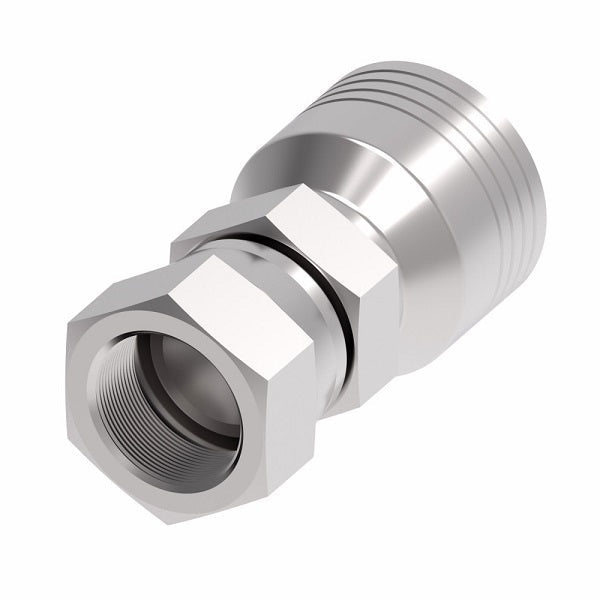

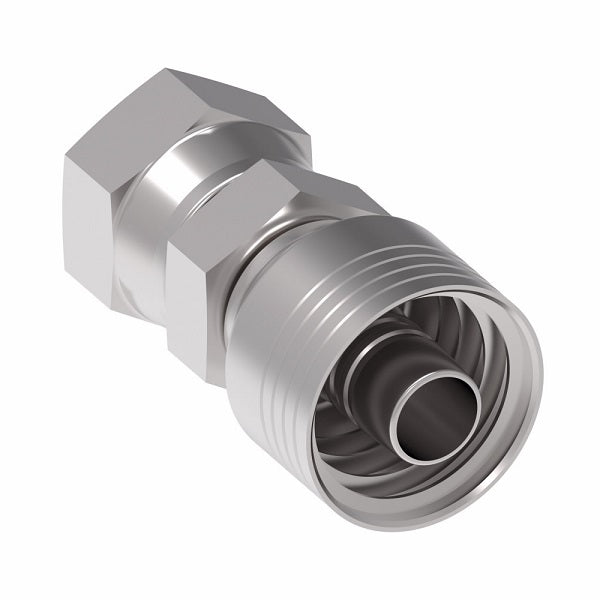

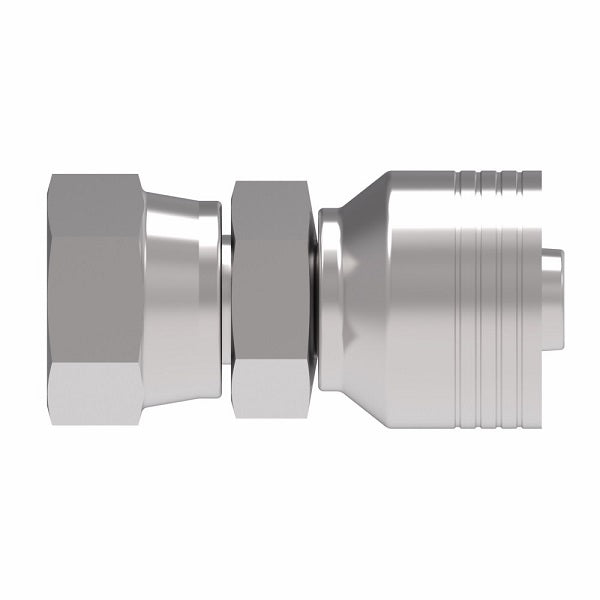

4S10KF10 Aeroquip by Danfoss | 4 Wire 4S Female Komatsu Swivel (KF) Crimp Fitting | -10 Female Komatsu Swivel x -10 Hose Barb | Steel

4S10KF10 Aeroquip by Danfoss | 4 Wire 4S Female Komatsu Swivel (KF) Crimp Fitting | -10 Female Komatsu Swivel x -10 Hose Barb | Steel

Name: 4S10KF10 Aeroquip by Danfoss | 4 Wire 4S Female Komatsu Swivel (KF) Crimp Fitting | -10 Female Komatsu Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S10KF10 Danfoss
Price: 94.22 USD
Availability: InStock

$94.22 - $94.22

$94.22

$94.22 - $94.22

$94.22

Aeroquip® by Danfoss
4 Wire 4S Komatsu Female Swivel 30° Flare Seat Crimp Fitting (KF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S10KF10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female Komatsu, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1	Hex 2
4S8KF8	-08	-	-08	M22 x 1.5	2.64"	1.57"	0.38"	1.06"	1.06"
4S10KF10	-10	-	-10	M24 x 1.5	2.84"	1.81"	0.49"	1.19"	1.18"
4S12KF12	-12	19	-12	M30X1.5	2.46"	1.03"	0.56"	1-3/16"	36mm
4S16KF16	-16	25	-16	M33X1.5	2.62"	1.06"	0.76"	1-5/8"	41mm
4S20KF20	-20	31	-20	M36X1.5	3.37"	1.19"	0.99"	1-13/16"	46mm
