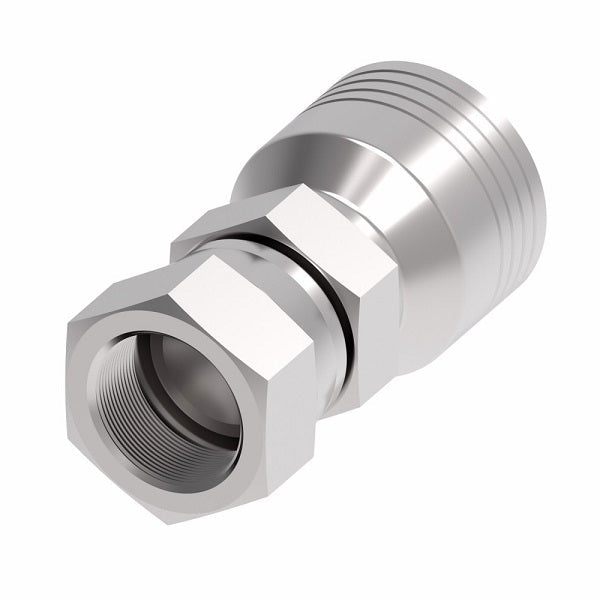

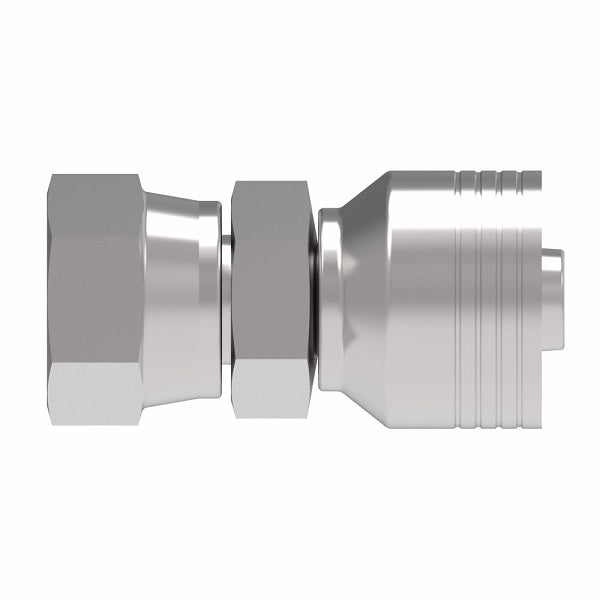

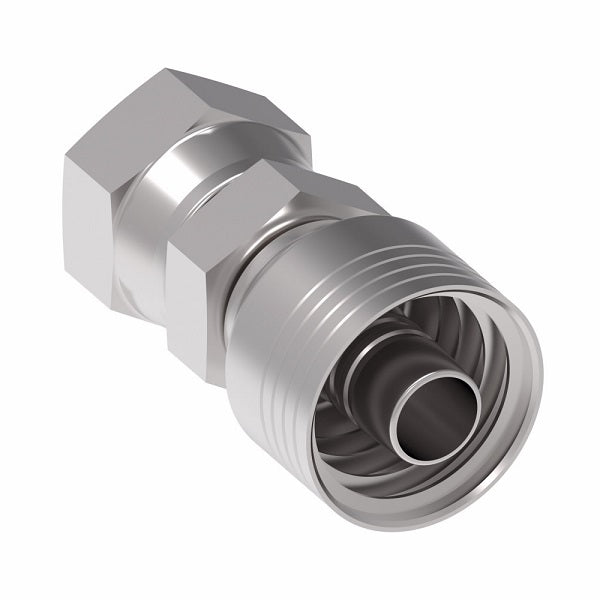

4S8KF8 Aeroquip by Danfoss | 4 Wire 4S Female Komatsu Swivel (KF) Crimp Fitting | -08 Female Komatsu Swivel x -08 Hose Barb | Steel | Pack of 10

4S8KF8 Aeroquip by Danfoss | 4 Wire 4S Female Komatsu Swivel (KF) Crimp Fitting | -08 Female Komatsu Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$638.80 - $638.80

$638.80

$638.80 - $638.80

$638.80

Aeroquip® by Danfoss
4 Wire 4S Komatsu Female Swivel 30° Flare Seat Crimp Fitting (KF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S8KF8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female Komatsu, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1	Hex 2
4S8KF8	-08	-	-08	M22 x 1.5	2.64"	1.57"	0.38"	1.06"	1.06"
4S10KF10	-10	-	-10	M24 x 1.5	2.84"	1.81"	0.49"	1.19"	1.18"
4S12KF12	-12	19	-12	M30X1.5	2.46"	1.03"	0.56"	1-3/16"	36mm
4S16KF16	-16	25	-16	M33X1.5	2.62"	1.06"	0.76"	1-5/8"	41mm
4S20KF20	-20	31	-20	M36X1.5	3.37"	1.19"	0.99"	1-13/16"	46mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
