4S20KF20 Aeroquip by Danfoss | 4 Wire 4S Komatsu Female Swivel 30° Flare Seat (KF) Crimp Fitting | -20 Komatsu Female BSPP Swivel x -20 Hose Barb | Steel
4S20KF20 Aeroquip by Danfoss | 4 Wire 4S Komatsu Female Swivel 30° Flare Seat (KF) Crimp Fitting | -20 Komatsu Female BSPP Swivel x -20 Hose Barb | Steel
4S20KF20 Aeroquip by Danfoss | 4 Wire 4S Komatsu Female Swivel 30° Flare Seat (KF) Crimp Fitting | -20 Komatsu Female BSPP Swivel x -20 Hose Barb | Steel
4S20KF20 Aeroquip by Danfoss | 4 Wire 4S Komatsu Female Swivel 30° Flare Seat (KF) Crimp Fitting | -20 Komatsu Female BSPP Swivel x -20 Hose Barb | Steel

4S20KF20 Aeroquip by Danfoss | 4 Wire 4S Komatsu Female Swivel 30° Flare Seat (KF) Crimp Fitting | -20 Komatsu Female BSPP Swivel x -20 Hose Barb | Steel

$222.20 - $222.20
$222.20
$222.20 - $222.20
$222.20

Aeroquip® by Danfoss

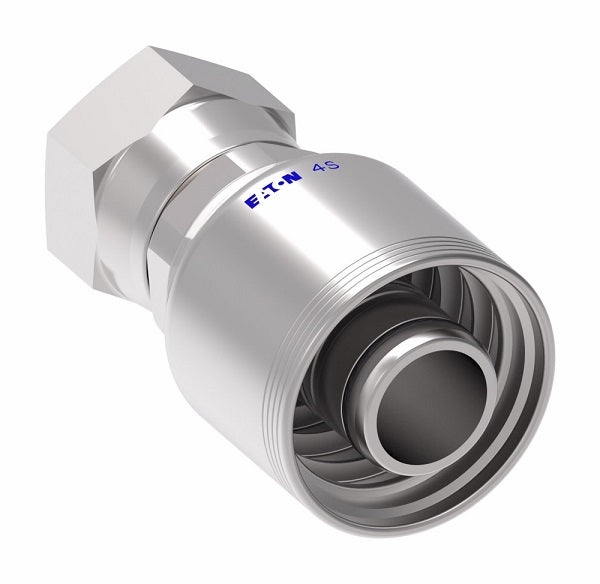

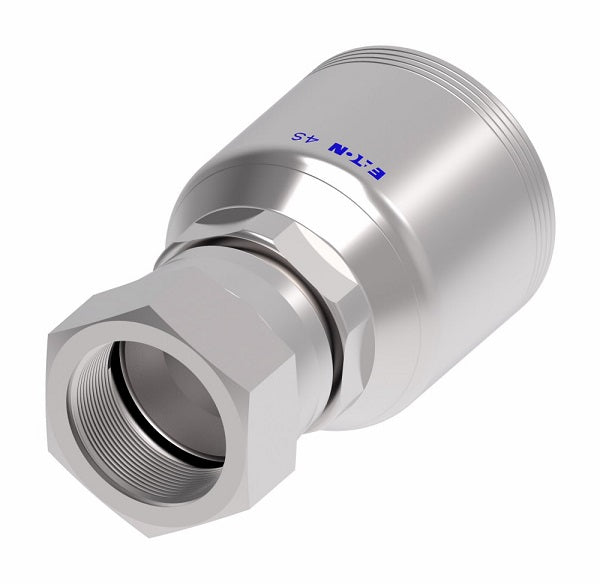

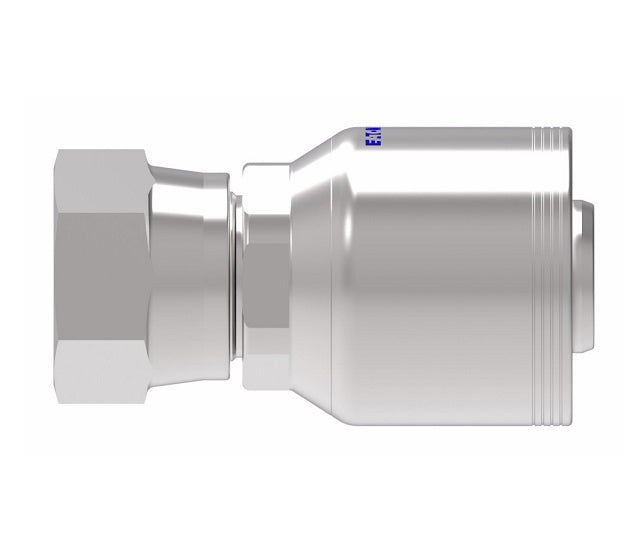

4 Wire 4S Komatsu Female Swivel 30° Flare Seat Crimp Fitting (KF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S20KF20 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female Komatsu, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
4S8KF8 -08 - -08 M22 x 1.5 2.64" 1.57" 0.38" 1.06" 1.06"
4S10KF10 -10 - -10 M24 x 1.5 2.84" 1.81" 0.49" 1.19" 1.18"
4S12KF12 -12 19 -12 M30X1.5 2.46" 1.03" 0.56" 1-3/16" 36mm
4S16KF16 -16 25 -16 M33X1.5 2.62" 1.06" 0.76" 1-5/8" 41mm
4S20KF20 -20 31 -20 M36X1.5 3.37" 1.19" 0.99" 1-13/16" 46mm
