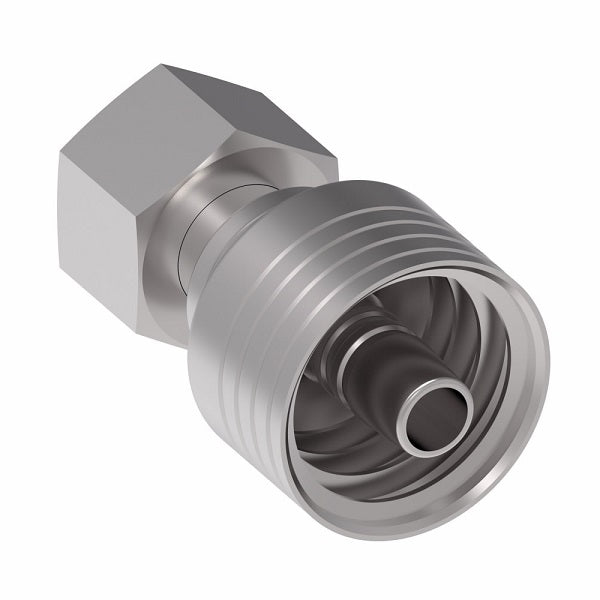

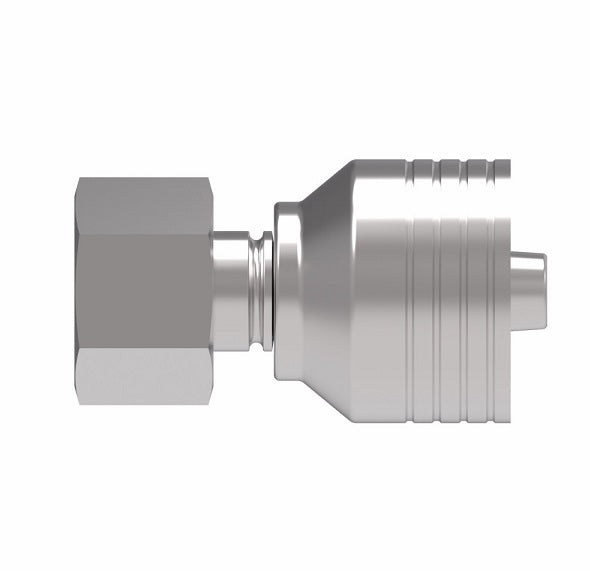

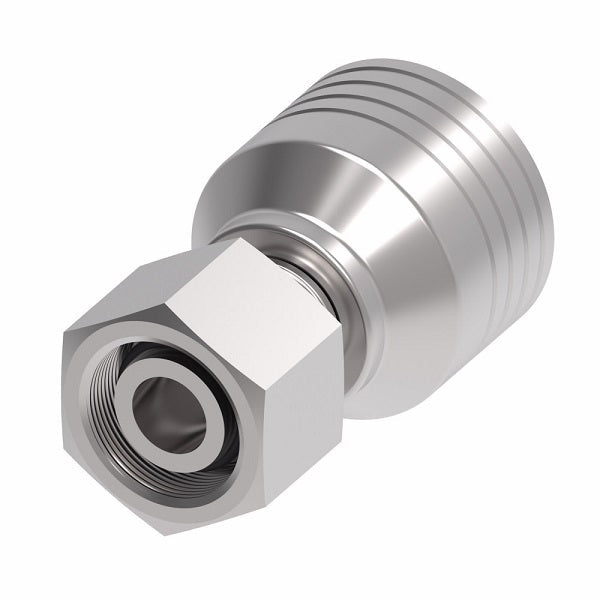

4S12DL8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L15 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

4S12DL8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Light Duty (DL) Crimp Fitting | L15 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$340.40 - $340.40

$340.40

$340.40 - $340.40

$340.40

Aeroquip® by Danfoss
4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) Crimp Fitting (DL) - Straight

l.Rh DKO (Light)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S12DL8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	L15 Female DIN, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	EØ	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	EØ	Hex 1
4S8DL6	10	-	-06	M16 x 1.5	1.99"	0.99"	0.26"	0.75"
4S10DL6	12	-	-06	M18 x 1.5	2.01"	1.02"	0.26"	0.87"
4S12DL8	15	-	-08	M22 x 1.5	2.30"	1.13"	0.38"	1.06"
4S16DL10	18	-	-10	M26 x 1.5	2.33"	1.17"	0.50"	1.26"
4S20DL8	-	-	-08	M30X2	-	-	-	-
4S20DL12	22	19	-12	M30X2	2.99"	1.56"	0.56"	36mm
4S25DL16	28	25	-16	M36X2	3.14"	1.59"	0.76"	41mm
4S32DL20	35	31	-20	M45X2	3.96"	1.79"	0.99"	50mm
