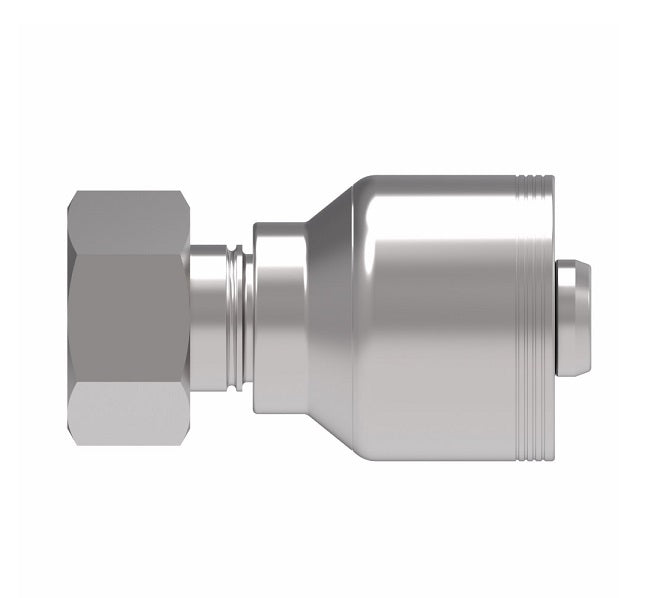

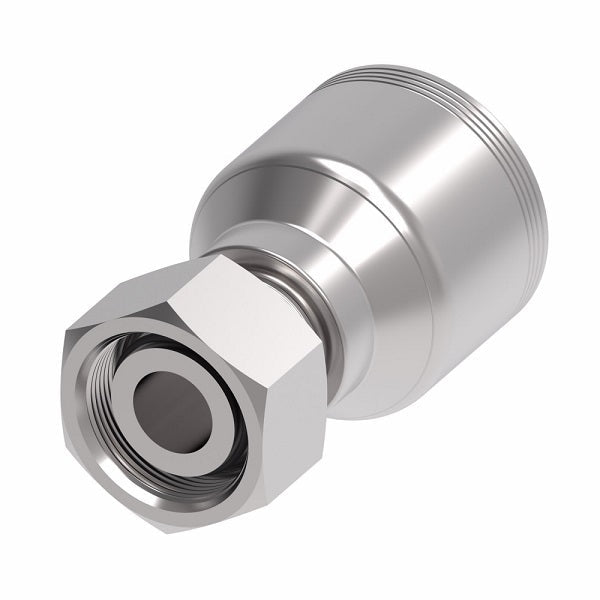

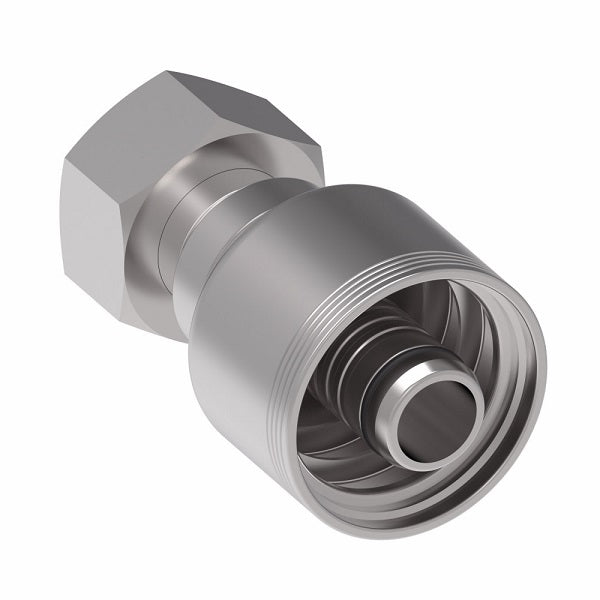

4S25DL16 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L28 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25DL16 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L28 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25DL16 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L28 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25DL16 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L28 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

4S25DL16 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L28 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

$99.66 - $99.66
$99.66
$99.66 - $99.66
$99.66

Aeroquip® by Danfoss
4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) Crimp Fitting (DL) - Straight

l.Rh DKO (Light)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S25DL16 Danfoss
Shape (Orientation): Straight
Ends Configuration: L28 Female DIN, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D EØ Hex 1
DN Dash Size
4S8DL6 10 - -06 M16 x 1.5 1.99" 0.99" 0.26" 0.75"
4S10DL6 12 - -06 M18 x 1.5 2.01" 1.02" 0.26" 0.87"
4S12DL8 15 - -08 M22 x 1.5 2.30" 1.13" 0.38" 1.06"
4S16DL10 18 - -10 M26 x 1.5 2.33" 1.17" 0.50" 1.26"
4S20DL8 - - -08 M30X2 - - - -
4S20DL12 22 19 -12 M30X2 2.99" 1.56" 0.56" 36mm
4S25DL16 28 25 -16 M36X2 3.14" 1.59" 0.76" 41mm
4S32DL20 35 31 -20 M45X2 3.96" 1.79" 0.99" 50mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
