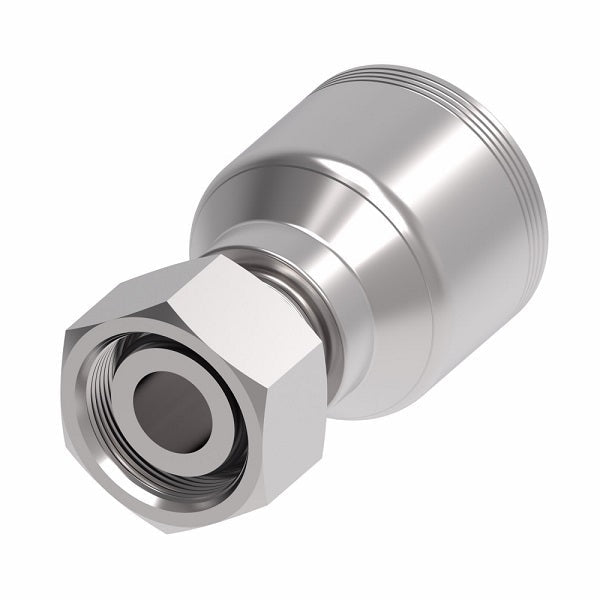

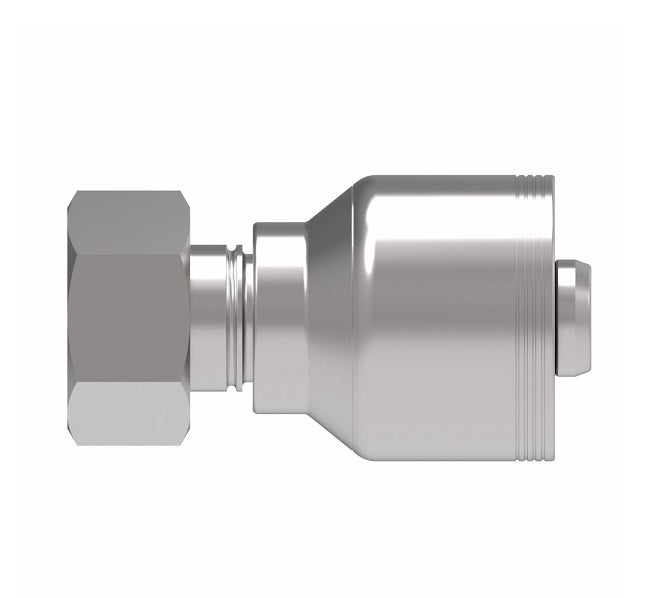

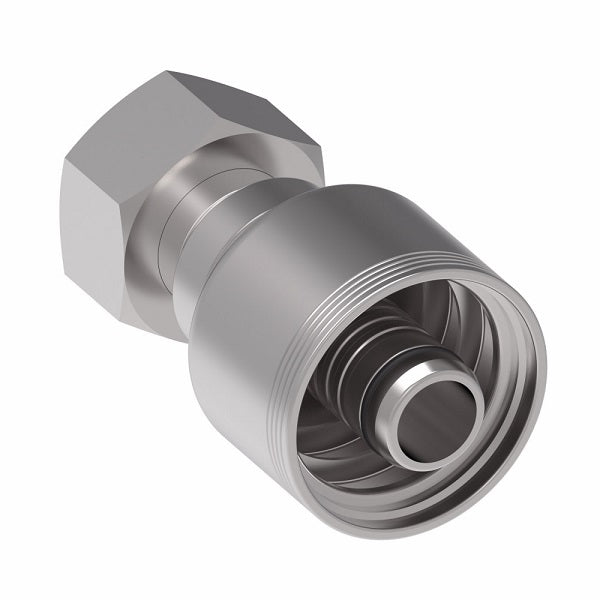

4S32DL20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L35 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel
4S32DL20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L35 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel
4S32DL20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L35 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel
4S32DL20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L35 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel

4S32DL20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L35 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel

$137.96 - $137.96
$137.96
$137.96 - $137.96
$137.96

Aeroquip® by Danfoss
4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) Crimp Fitting (DL) - Straight

l.Rh DKO (Light)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S32DL20 Danfoss
Shape (Orientation): Straight
Ends Configuration: L35 Female DIN, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D EØ Hex 1
DN Dash Size
4S8DL6 10 - -06 M16 x 1.5 1.99" 0.99" 0.26" 0.75"
4S10DL6 12 - -06 M18 x 1.5 2.01" 1.02" 0.26" 0.87"
4S12DL8 15 - -08 M22 x 1.5 2.30" 1.13" 0.38" 1.06"
4S16DL10 18 - -10 M26 x 1.5 2.33" 1.17" 0.50" 1.26"
4S20DL8 - - -08 M30X2 - - - -
4S20DL12 22 19 -12 M30X2 2.99" 1.56" 0.56" 36mm
4S25DL16 28 25 -16 M36X2 3.14" 1.59" 0.76" 41mm
4S32DL20 35 31 -20 M45X2 3.96" 1.79" 0.99" 50mm
