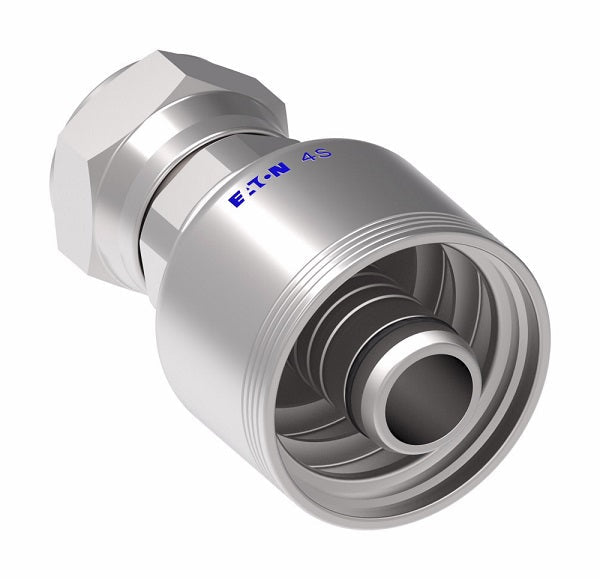

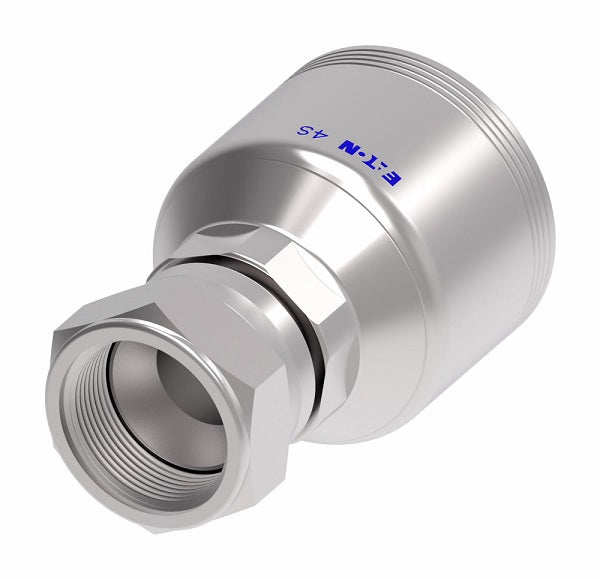

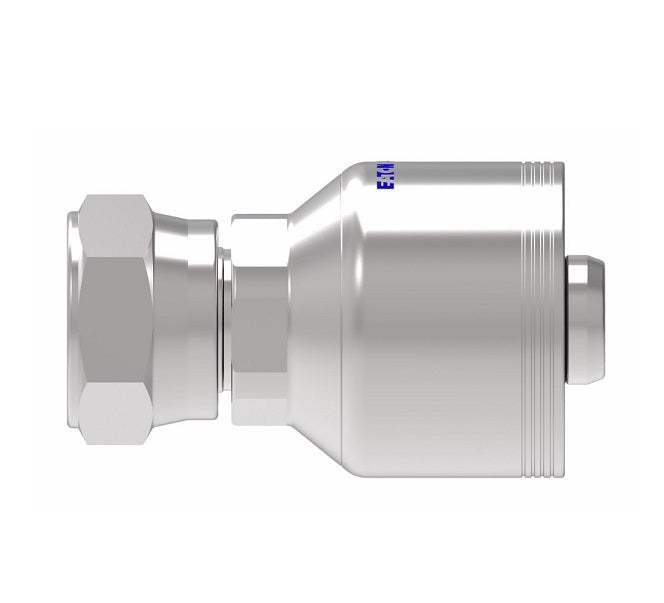

4S12JF12 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel
4S12JF12 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel
4S12JF12 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel
4S12JF12 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel

4S12JF12 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -12 Female BSPP Swivel x -12 Hose Barb | Steel

$84.46 - $84.46
$84.46
$84.46 - $84.46
$84.46

Aeroquip® by Danfoss
4 Wire 4S JIS Female Swivel 30° Flare Seat Crimp Fitting (JF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S12JF12 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parellel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
4S6JF6 -06 - -06 G 3/8-19 2.17" 1.33" 0.26" 0.87" 0.87"
4S8JF8 -08 - -08 G 1/2-14 2.54" 1.46" 0.38" 1.06" 1.06"
4S12JF12 -12 19 -12 G 3/4" 2.46" 1.03" 0.56" 1-3/16" 32mm
4S16JF16 -16 25 -16 G 1" 2.62" 1.06" 0.76" 1-5/8" 41mm
4S20JF20 -20 31 -20 G 1-1/4" 3.37" 1.19" 0.99" 1-13/16" 50mm
