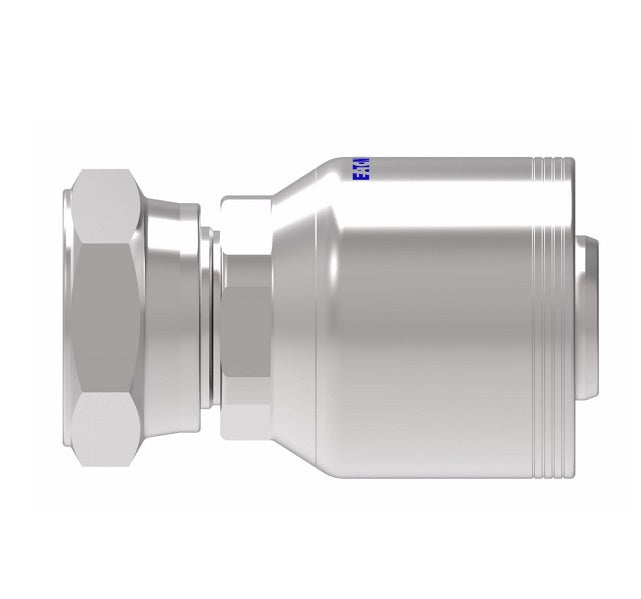

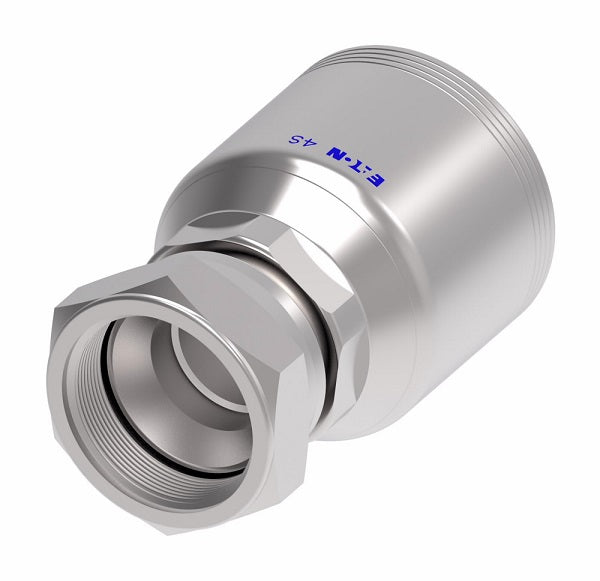

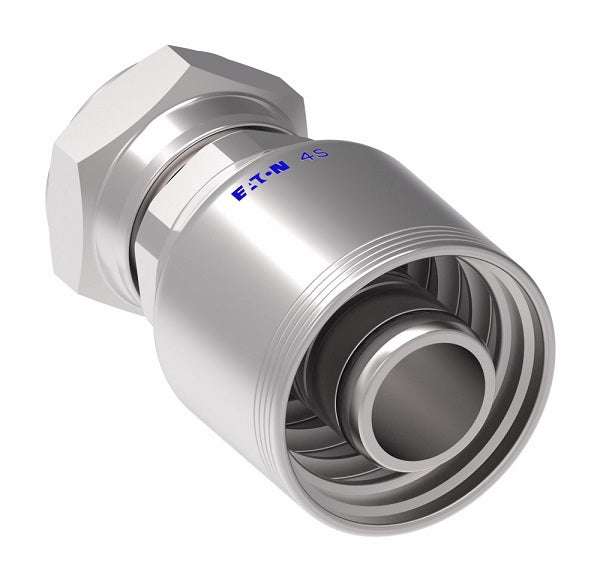

4S20JF20 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -20 Female BSPP Swivel x -20 Hose Barb | Steel

4S20JF20 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel 30° Flare Seat (JF) Crimp Fitting | -20 Female BSPP Swivel x -20 Hose Barb | Steel

$197.31 - $197.31
$197.31
$197.31 - $197.31
$197.31

Aeroquip® by Danfoss
4 Wire 4S JIS Female Swivel 30° Flare Seat Crimp Fitting (JF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4S20JF20 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female BSPP, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parellel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
4S6JF6 -06 - -06 G 3/8-19 2.17" 1.33" 0.26" 0.87" 0.87"
4S8JF8 -08 - -08 G 1/2-14 2.54" 1.46" 0.38" 1.06" 1.06"
4S12JF12 -12 19 -12 G 3/4" 2.46" 1.03" 0.56" 1-3/16" 32mm
4S16JF16 -16 25 -16 G 1" 2.62" 1.06" 0.76" 1-5/8" 41mm
4S20JF20 -20 31 -20 G 1-1/4" 3.37" 1.19" 0.99" 1-13/16" 50mm
