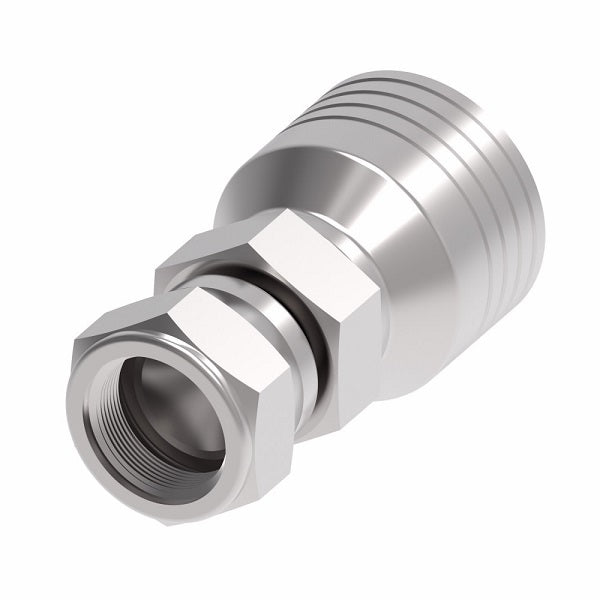

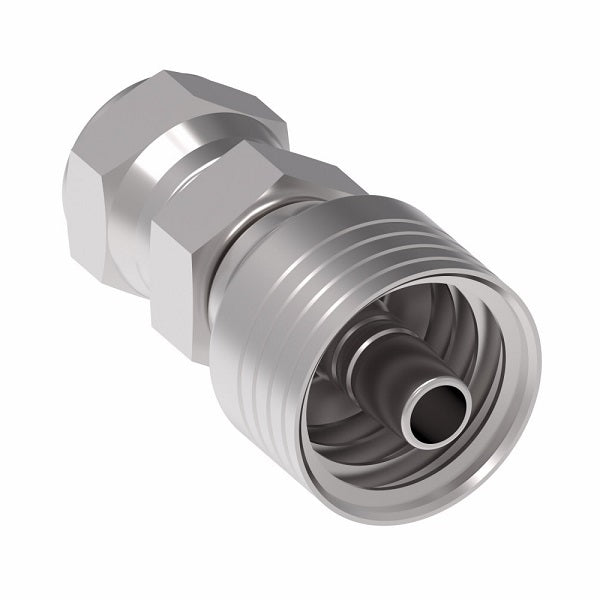

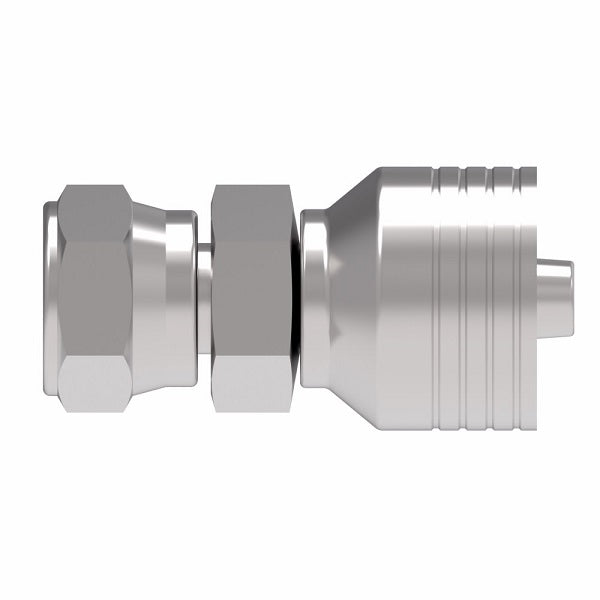

4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel

4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel

Name: 4S8JF8 Aeroquip by Danfoss | 4 Wire 4S JIS Female Swivel (JF) Crimp Fitting | -08 Female JIS Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S8JF8 Danfoss
Price: 64.22 USD
Availability: InStock

$64.22 - $64.22

$64.22

$64.22 - $64.22

$64.22

Aeroquip® by Danfoss
4 Wire 4S JIS Female Swivel 30° Flare Seat Crimp Fitting (JF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4S8JF8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIS, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"G" as part of thread size is ISO designation for parellel thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1	Hex 2
4S6JF6	-06	-	-06	G 3/8-19	2.17"	1.33"	0.26"	0.87"	0.87"
4S8JF8	-08	-	-08	G 1/2-14	2.54"	1.46"	0.38"	1.06"	1.06"
4S12JF12	-12	19	-12	G 3/4"	2.46"	1.03"	0.56"	1-3/16"	32mm
4S16JF16	-16	25	-16	G 1"	2.62"	1.06"	0.76"	1-5/8"	41mm
4S20JF20	-20	31	-20	G 1-1/4"	3.37"	1.19"	0.99"	1-13/16"	50mm
