4S20DSA12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DSA12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DSA12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DSA12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

4S20DSA12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

$148.44 - $148.44
$148.44
$148.44 - $148.44
$148.44

Aeroquip® by Danfoss

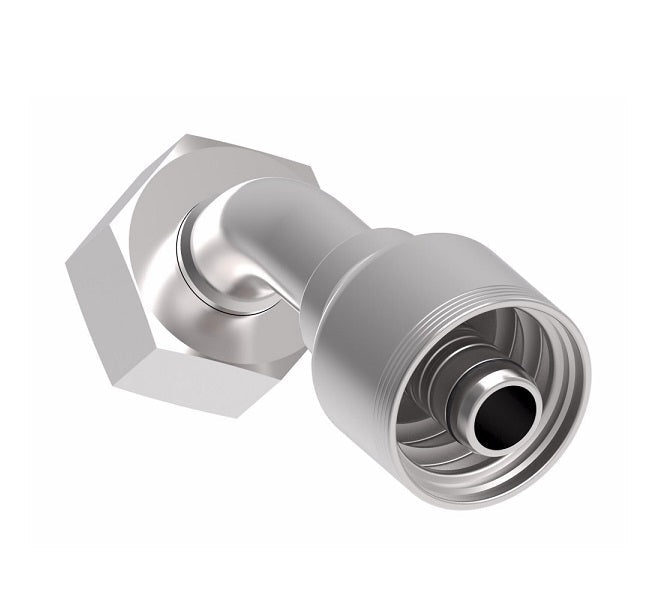

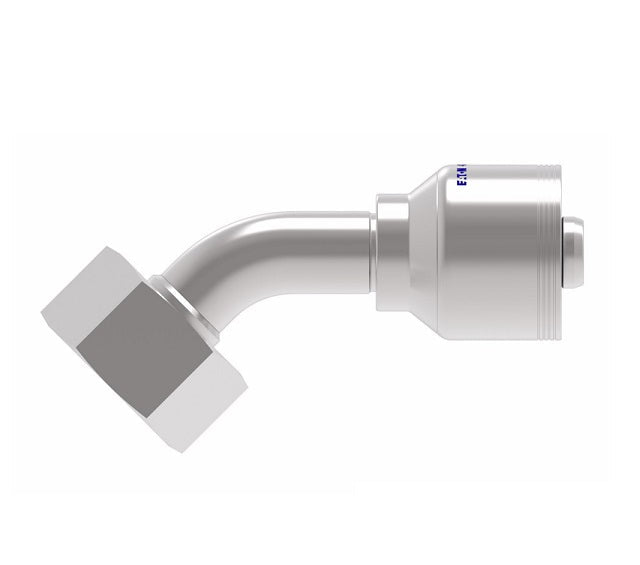

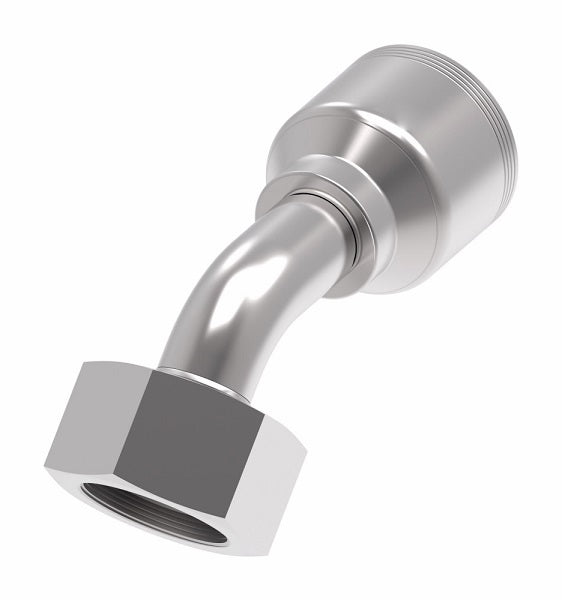

4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSA) - 45° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S20DSA12 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: S25 Female DIN, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash H Hex 1
DN Dash Size
4S8DSA6 12 - -06 M20 x 1.5 2.69" 1.69" 0.26" 0.75" 0.94"
4S12DSA8 16 - -08 M24 x 1.5 3.14" 1.97" 0.38" 0.90" 1.18"
4S16DSA10 20 - -10 M30 x 2 3.51" 2.36" 0.50" 1.02" 1.42"
4S20DSA12 25 19 -12 M36X2 4.59" 3.17" 0.56" 1.26" 46mm
4S25DSA12 30 19 -12 M42X2 5.15" 3.72" 0.56" 1.38" 50mm
4S25DSA16 30 25 -16 M42X2 5.28" 3.72" 0.76" 1.38" 50mm
4S32DSA16 38 25 -16 M52X2 5.71" 4.15" 0.76" 1.54" 60mm
4S32DSA20 38 31 -20 M52X2 6.35" 4.19" 0.99" 1.54" 60mm
