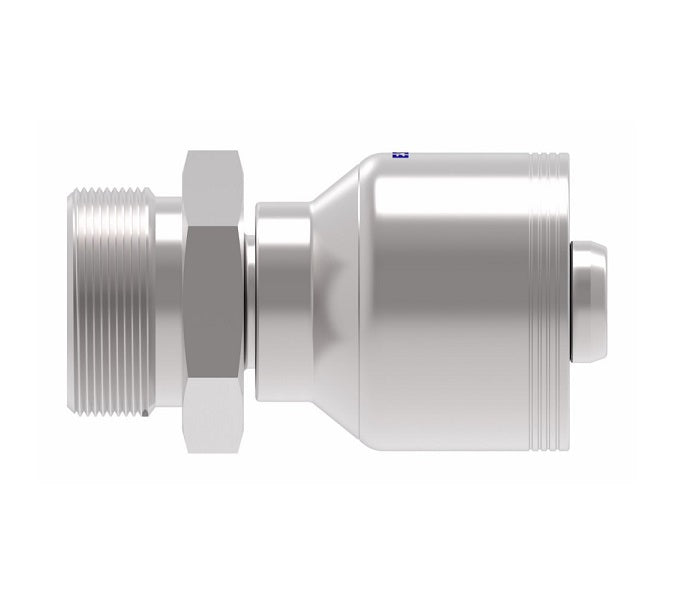

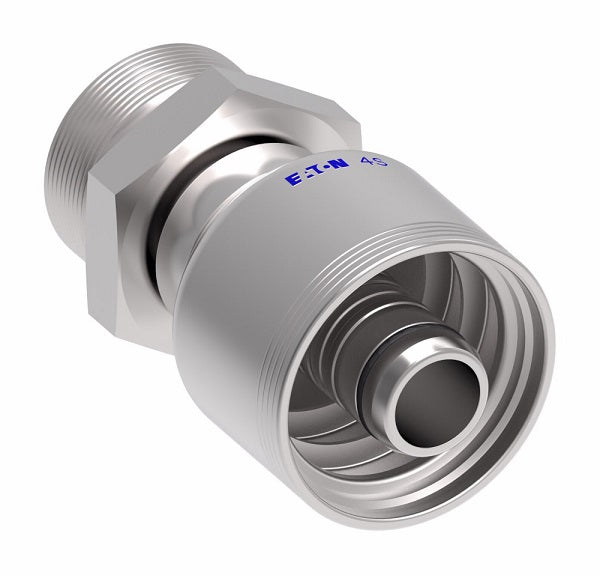

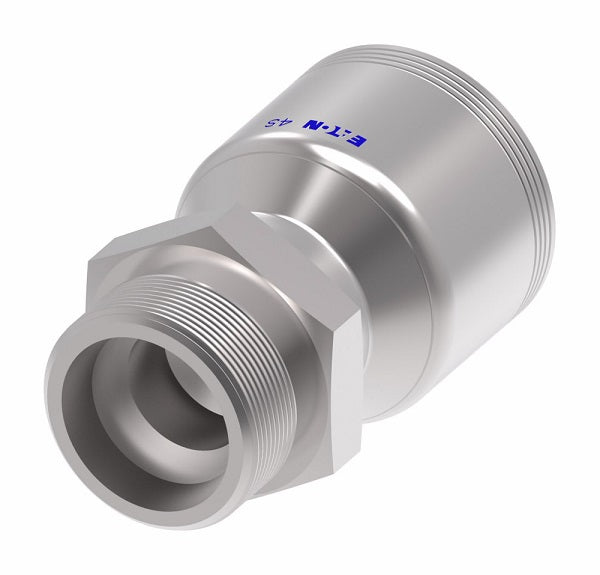

4S20EK12 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S25 Male DKO/DIN 24° Seat x -12 Hose Barb | Steel

4S20EK12 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S25 Male DKO/DIN 24° Seat x -12 Hose Barb | Steel | Pack of 10

$818.10 - $818.10

$818.10

$818.10 - $818.10

$818.10

Aeroquip® by Danfoss
4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) Crimp Fitting (EK) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S20EK12 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	S25 Male DIN, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4S6EK6	10	-	-06	M18 x 1.5	1.79"	0.95"	0.26"	0.75"
4S8EK6	12	-	-06	M20 x 1.5	1.98"	0.98"	0.26"	0.87"
4S12EK8	16	-	-08	M24 x 1.5	2.28"	1.11"	0.38"	1.06"
4S16EK10	20	-	-10	M30 x 2	2.44"	1.29"	0.50"	1.26"
4S20EK12	25	19	-12	M36X2	3.09"	1.67"	0.56"	41mm
4S25EK16	30	25	-16	M42X2	3.30"	1.73"	0.75"	46mm
4S32EK20	38	31	-20	M52X2	4.21"	2.04"	0.99"	55mm
