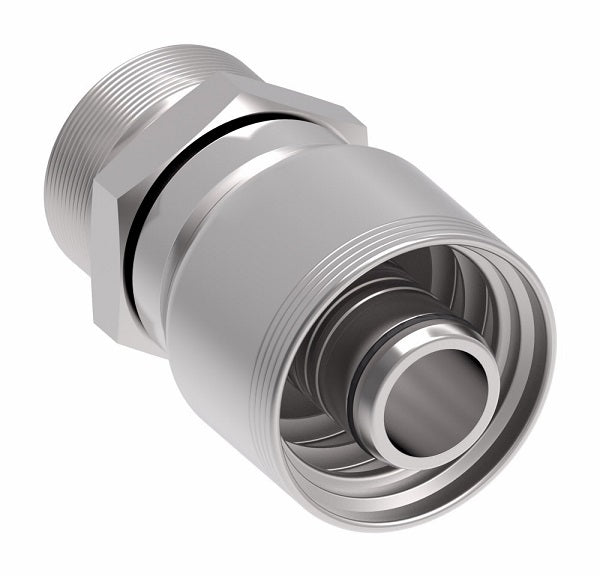

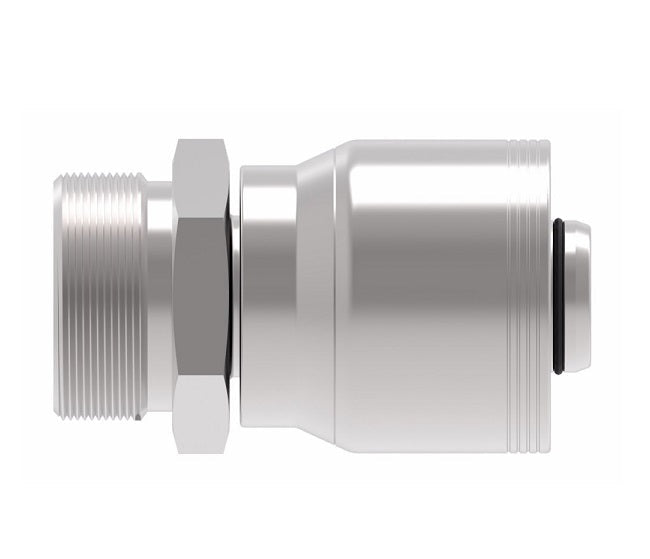

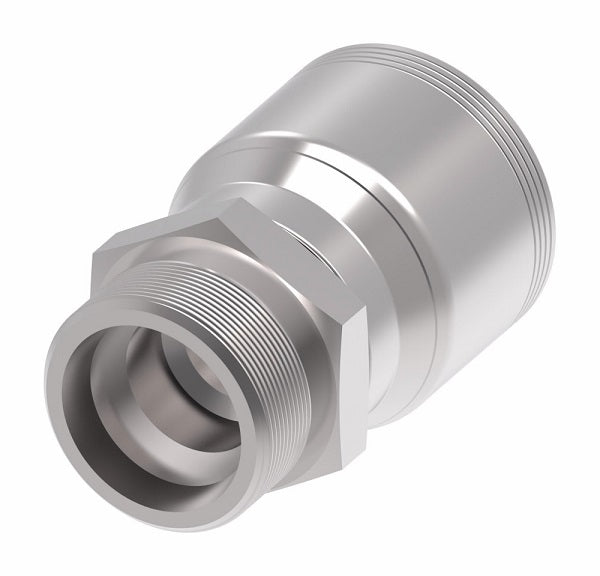

4S25EK16 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S30 Male DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25EK16 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S30 Male DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25EK16 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S30 Male DKO/DIN 24° Seat x -16 Hose Barb | Steel
4S25EK16 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S30 Male DKO/DIN 24° Seat x -16 Hose Barb | Steel

4S25EK16 Aeroquip by Danfoss | 4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) (EK) Crimp Fitting | S30 Male DKO/DIN 24° Seat x -16 Hose Barb | Steel

$100.84 - $100.84
$100.84
$100.84 - $100.84
$100.84

Aeroquip® by Danfoss
4 Wire 4S Male DIN 24° Seat Rigid DKO (Heavy) Crimp Fitting (EK) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S25EK16 Danfoss
Shape (Orientation): Straight
Ends Configuration: S30 Male DIN, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash Hex 1
DN Dash Size
4S6EK6 10 - -06 M18 x 1.5 1.79" 0.95" 0.26" 0.75"
4S8EK6 12 - -06 M20 x 1.5 1.98" 0.98" 0.26" 0.87"
4S12EK8 16 - -08 M24 x 1.5 2.28" 1.11" 0.38" 1.06"
4S16EK10 20 - -10 M30 x 2 2.44" 1.29" 0.50" 1.26"
4S20EK12 25 19 -12 M36X2 3.09" 1.67" 0.56" 41mm
4S25EK16 30 25 -16 M42X2 3.30" 1.73" 0.75" 46mm
4S32EK20 38 31 -20 M52X2 4.21" 2.04" 0.99" 55mm
