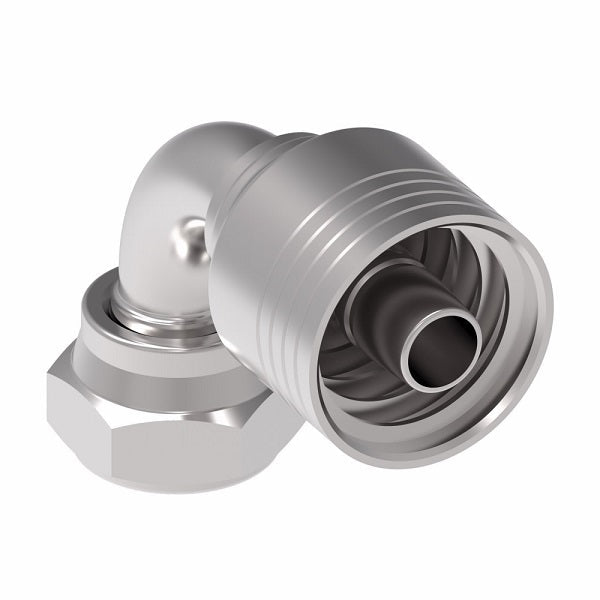

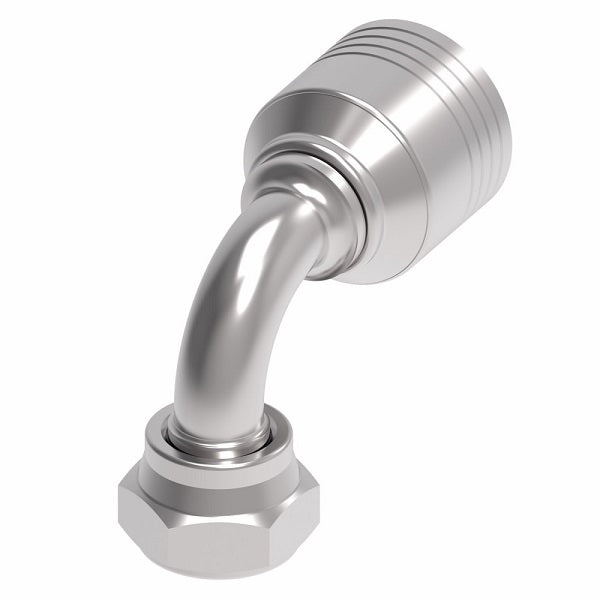

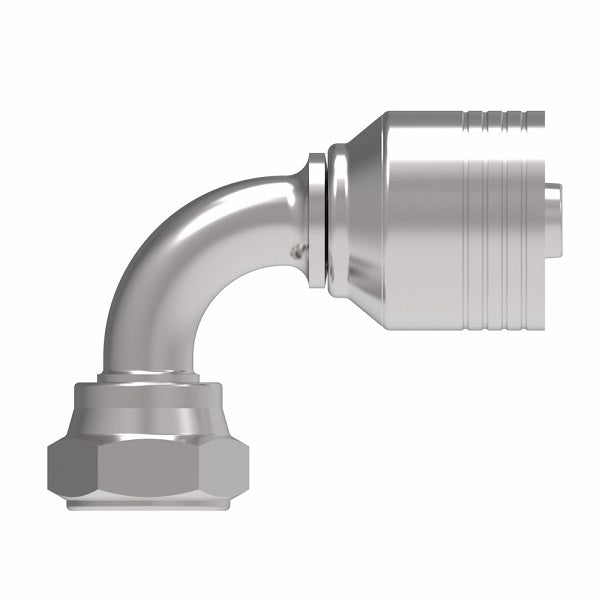

4S6BFB6 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel

4S6BFB6 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -06 Female BSPP Swivel x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$525.20 - $525.20

$525.20

$525.20 - $525.20

$525.20

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFB) - 90° Elbow

Specifications for Variant SKU: 4S6BFB6 Danfoss \| 10 \|
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female BSPP, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
"G" as part of thread size is ISO designation for parellel thread.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	EØ	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	EØ	H	Hex 1
4S6BFB6	-06	-	-06	-	-	-	-	-	-
4S8BFB8	-08	-	-08	G 1/2"	2.52"	1.35"	0.38"	1.48"	1.06"
4S12BFB12	-12	19	-12	G 3/4"	4.17"	2.74"	0.56"	2.24"	32mm
4S16BFB12	-16	19	-12	G 1"	4.17"	2.74"	0.56"	2.68"	41mm
4S16BFB16	-16	25	-16	G 1"	4.94"	3.38"	0.76"	2.68"	41mm
4S20BFB16	-20	25	-16	G 1-1/4"	4.94"	3.38"	0.76"	3.11"	50mm
4S20BFB20	-20	31	-20	G 1-1/4"	5.71"	3.74"	0.99"	3.11"	50mm
4S24BFB24	-24	38	-24	G 1-1/2"	8.07"	5.00"	1.22"	3.88"	55mm
4S32BFA32	-32	51	-32	G 2"	9.67"	6.60"	1.66"	4.93"	70mm
