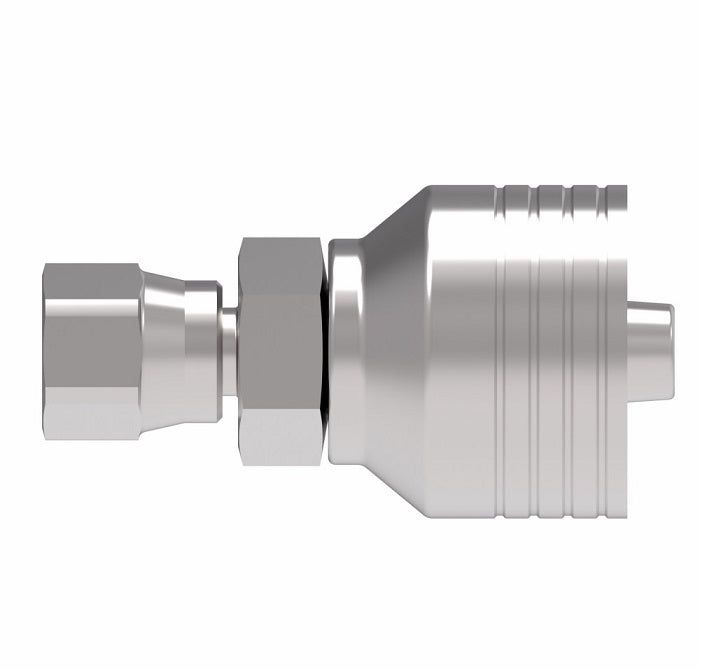

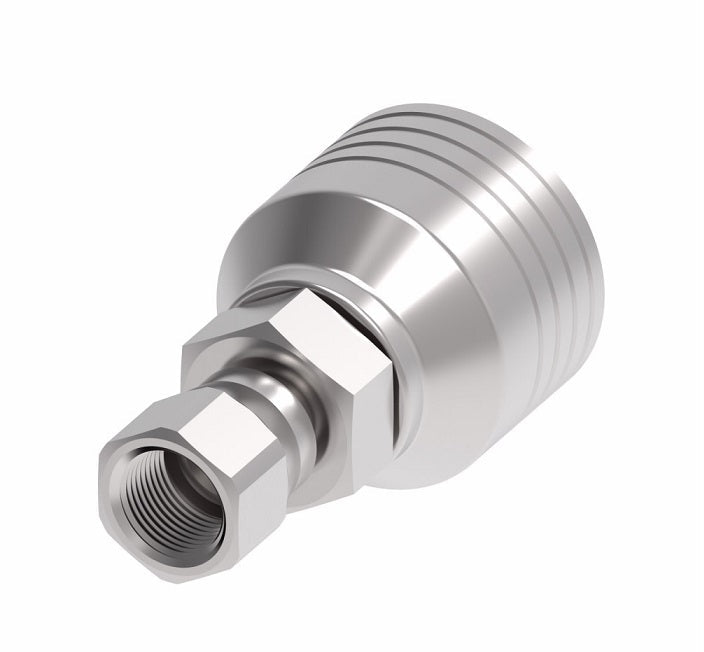

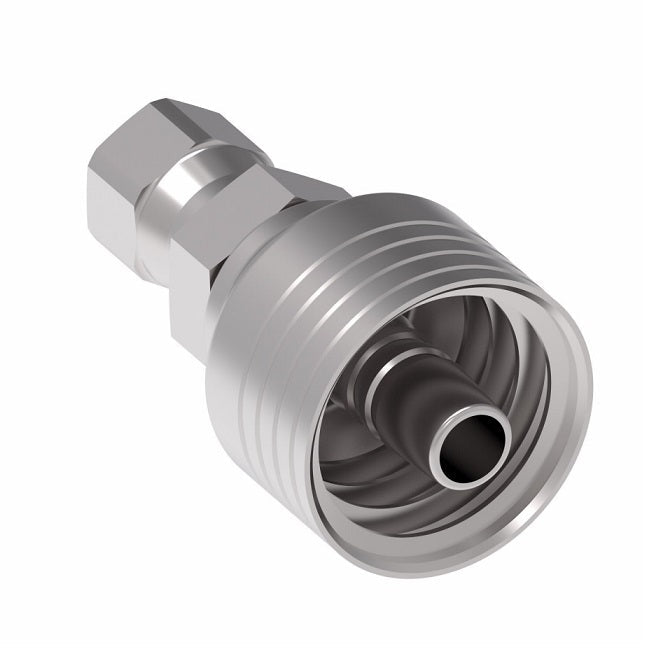

4SA10FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel

4SA10FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -10 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10

$243.47 - $243.47

$243.47

$243.47 - $243.47

$243.47

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA10FJ8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.


Steel Part Number	Stainless Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Stainless Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash
4SA4FJ6	-	-04	-	-06	7/16-20	2.19"	1.19"	0.17"	9/16"	11/16"
4SA6FJ6	-	-06	-	-06	9/16-18	2.28"	1.28"	0.26"	1-1/16"	11/16"
4SA8FJ6	-	-08	-	-06	3/4-16	2.31"	1.31"	0.26"	7/8"	11/16"
4SA6FJ8	-	-06	-	-08	9/16-18	2.36"	1.36"	0.33"	11/16"	13/16"
4SA8FJ8	-	-08	-	-08	3/4-16	2.63"	1.46"	0.38"	7/8"	13/16"
4SA10FJ8	-	-10	-	-08	7/8-14	2.64"	1.47"	0.38"	1"	7/8"
4SA12FJ8	-	-12	-	-08	1-1/16-12	2.73"	1.56"	0.38"	1-1/4"	1"
4SA10FJ10	-	-10	-	-10	7/8-14	2.77"	1.62"	0.50"	1"	15/16"
4SA12FJ10	-	-12	-	-10	1-1/16-12	2.72"	1.57"	0.50"	1-1/4"	1"
4SA10FJ12	-	-10	19	-12	7/8-14	2.95"	1.53"	0.48"	1-3/16"	1"
4SA12FJ12	-	-12	19	-12	1-1/16-12	3.23"	1.80"	0.56"	1-3/16"	1-1/4"
4SA14FJ12	-	-14	19	-12	1-3/16-12	3.05"	1.63"	0.56"	1-3/16"	1-3/8"
4SA16FJ12	-	-16	19	-12	1-5/16-12	3.16"	1.73"	0.56"	1-3/16"	1-1/2"
4SA12FJ16	-	-12	25	-16	1-1/16-12	3.10"	1.54"	0.61"	1-5/8"	1-1/4"
4SA16FJ16	4SA16FJ16C	-16	25	-16	1-5/16-12	3.51"	1.94"	0.76"	1-5/8"	1-1/2"
4SA20FJ16	-	-20	25	-16	1-5/8-12	3.38"	1.81"	0.76"	1-5/8"	2"
4SA16FJ20	-	-16	31	-20	1-5/16-12	3.90"	1.72"	0.99"	1-13/16"	1-1/2"
4SA20FJ20	-	-20	31	-20	1-5/8-12	4.00"	1.82"	0.99"	1-13/16"	2"
4SA24FJ20	-	-24	31	-20	1-7/8-12	4.20"	2.03 "	0.99"	1-13/16"	2-1/4"
4SA24FJ24	-	-24	38	-24	1-7/8-12	5.31"	2.24"	1.22"	2-1/4"	2-1/4"
4SA32FJ32	-	-32	51	-32	2-1/2-12	5.75"	2.68"	1.66"	-	2-7/8"
