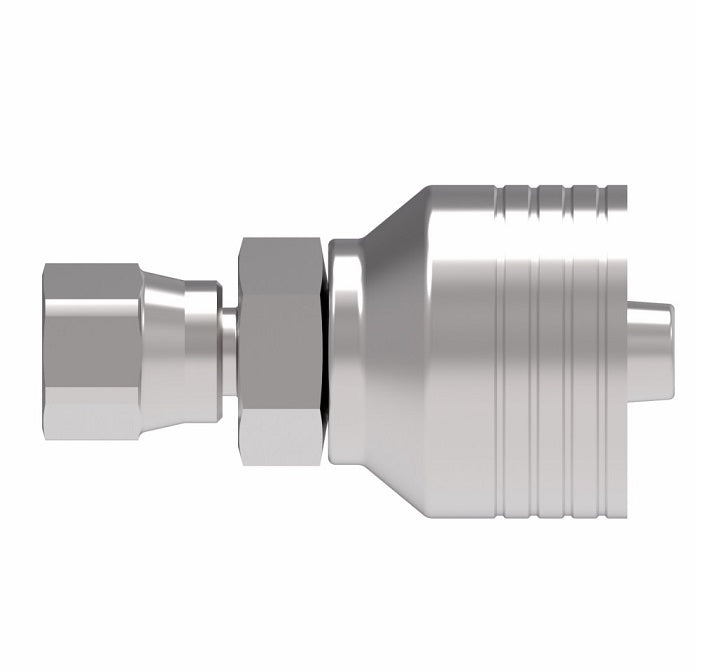

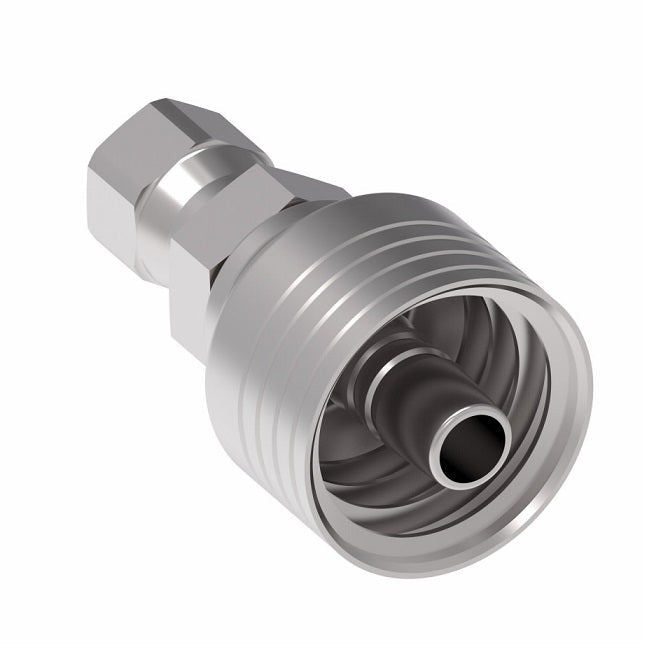

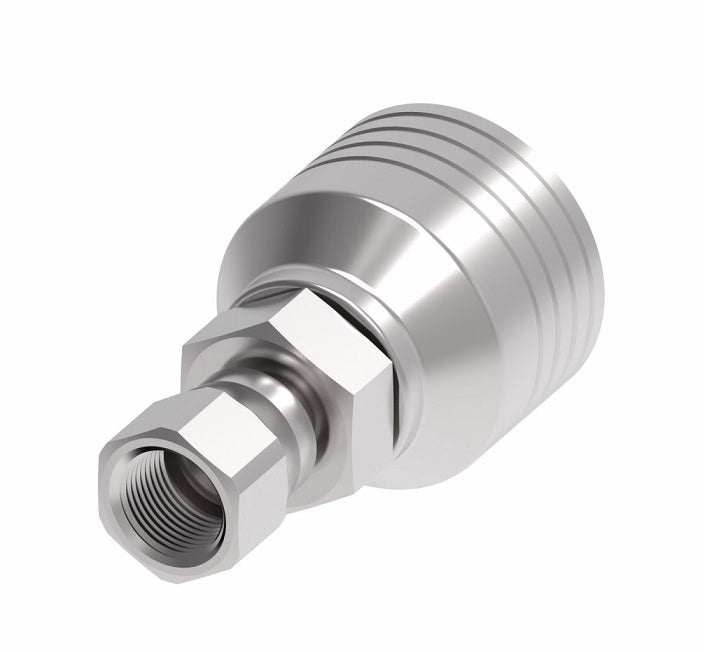

4SA12FJ10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel
4SA12FJ10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel
4SA12FJ10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel
4SA12FJ10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel

4SA12FJ10 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -10 Hose Barb | Steel

$28.80 - $28.80
$28.80
$28.80 - $28.80
$28.80

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12FJ10 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIC, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
Steel
Part Number 		Stainless Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
4SA4FJ6 - -04 - -06 7/16-20 2.19" 1.19" 0.17" 9/16" 11/16"
4SA6FJ6 - -06 - -06 9/16-18 2.28" 1.28" 0.26" 1-1/16" 11/16"
4SA8FJ6 - -08 - -06 3/4-16 2.31" 1.31" 0.26" 7/8" 11/16"
4SA6FJ8 - -06 - -08 9/16-18 2.36" 1.36" 0.33" 11/16" 13/16"
4SA8FJ8 - -08 - -08 3/4-16 2.63" 1.46" 0.38" 7/8" 13/16"
4SA10FJ8 - -10 - -08 7/8-14 2.64" 1.47" 0.38" 1" 7/8"
4SA12FJ8 - -12 - -08 1-1/16-12 2.73" 1.56" 0.38" 1-1/4" 1"
4SA10FJ10 - -10 - -10 7/8-14 2.77" 1.62" 0.50" 1" 15/16"
4SA12FJ10 - -12 - -10 1-1/16-12 2.72" 1.57" 0.50" 1-1/4" 1"
4SA10FJ12 - -10 19 -12 7/8-14 2.95" 1.53" 0.48" 1-3/16" 1"
4SA12FJ12 - -12 19 -12 1-1/16-12 3.23" 1.80" 0.56" 1-3/16" 1-1/4"
4SA14FJ12 - -14 19 -12 1-3/16-12 3.05" 1.63" 0.56" 1-3/16" 1-3/8"
4SA16FJ12 - -16 19 -12 1-5/16-12 3.16" 1.73" 0.56" 1-3/16" 1-1/2"
4SA12FJ16 - -12 25 -16 1-1/16-12 3.10" 1.54" 0.61" 1-5/8" 1-1/4"
4SA16FJ16 4SA16FJ16C -16 25 -16 1-5/16-12 3.51" 1.94" 0.76" 1-5/8" 1-1/2"
4SA20FJ16 - -20 25 -16 1-5/8-12 3.38" 1.81" 0.76" 1-5/8" 2"
4SA16FJ20 - -16 31 -20 1-5/16-12 3.90" 1.72" 0.99" 1-13/16" 1-1/2"
4SA20FJ20 - -20 31 -20 1-5/8-12 4.00" 1.82" 0.99" 1-13/16" 2"
4SA24FJ20 - -24 31 -20 1-7/8-12 4.20" 2.03 " 0.99" 1-13/16" 2-1/4"
4SA24FJ24 - -24 38 -24 1-7/8-12 5.31" 2.24" 1.22" 2-1/4" 2-1/4"
4SA32FJ32 - -32 51 -32 2-1/2-12 5.75" 2.68" 1.66" - 2-7/8"
