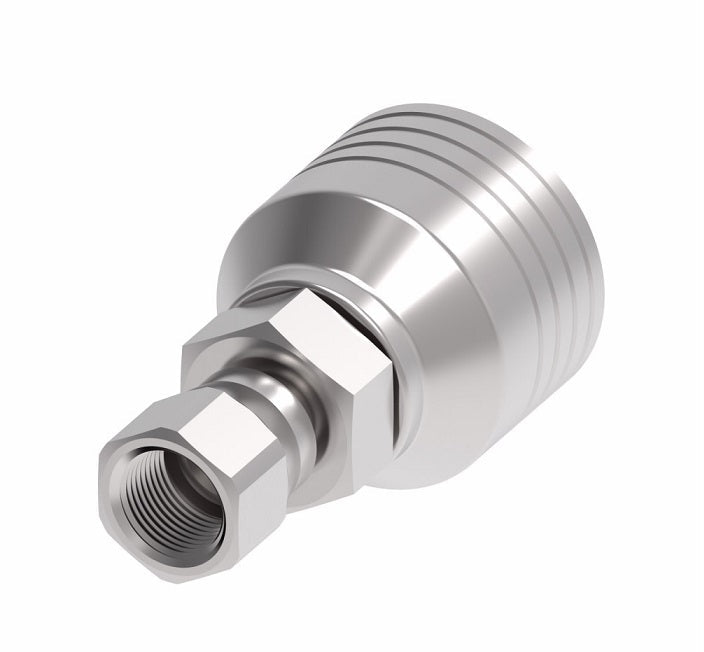

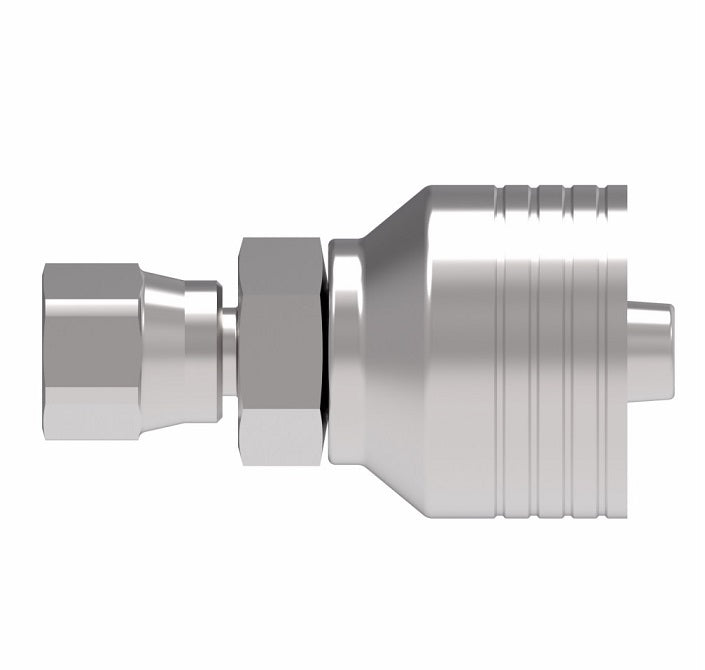

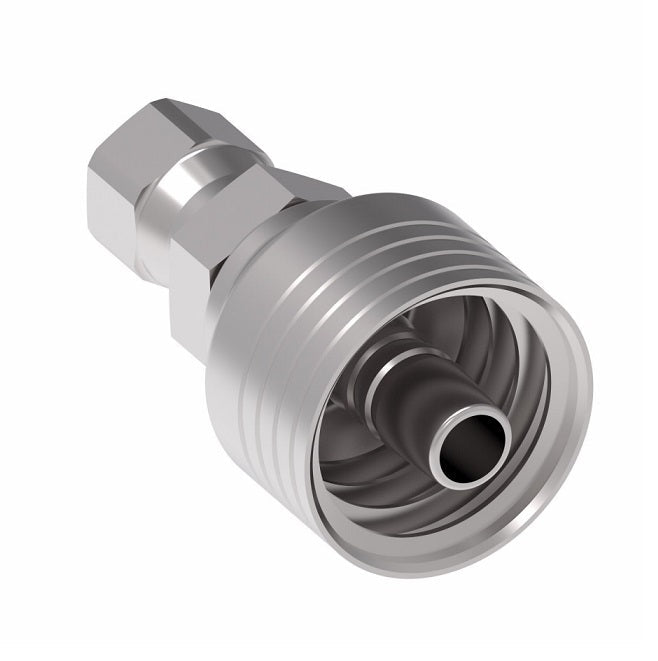

4SA12FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -08 Hose Barb | Steel
4SA12FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10
4SA12FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10
4SA12FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -08 Hose Barb | Steel

4SA12FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$312.00 - $312.00
$312.00
$312.00 - $312.00
$312.00

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12FJ8 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIC, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
Steel
Part Number 		Stainless Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
4SA4FJ6 - -04 - -06 7/16-20 2.19" 1.19" 0.17" 9/16" 11/16"
4SA6FJ6 - -06 - -06 9/16-18 2.28" 1.28" 0.26" 1-1/16" 11/16"
4SA8FJ6 - -08 - -06 3/4-16 2.31" 1.31" 0.26" 7/8" 11/16"
4SA6FJ8 - -06 - -08 9/16-18 2.36" 1.36" 0.33" 11/16" 13/16"
4SA8FJ8 - -08 - -08 3/4-16 2.63" 1.46" 0.38" 7/8" 13/16"
4SA10FJ8 - -10 - -08 7/8-14 2.64" 1.47" 0.38" 1" 7/8"
4SA12FJ8 - -12 - -08 1-1/16-12 2.73" 1.56" 0.38" 1-1/4" 1"
4SA10FJ10 - -10 - -10 7/8-14 2.77" 1.62" 0.50" 1" 15/16"
4SA12FJ10 - -12 - -10 1-1/16-12 2.72" 1.57" 0.50" 1-1/4" 1"
4SA10FJ12 - -10 19 -12 7/8-14 2.95" 1.53" 0.48" 1-3/16" 1"
4SA12FJ12 - -12 19 -12 1-1/16-12 3.23" 1.80" 0.56" 1-3/16" 1-1/4"
4SA14FJ12 - -14 19 -12 1-3/16-12 3.05" 1.63" 0.56" 1-3/16" 1-3/8"
4SA16FJ12 - -16 19 -12 1-5/16-12 3.16" 1.73" 0.56" 1-3/16" 1-1/2"
4SA12FJ16 - -12 25 -16 1-1/16-12 3.10" 1.54" 0.61" 1-5/8" 1-1/4"
4SA16FJ16 4SA16FJ16C -16 25 -16 1-5/16-12 3.51" 1.94" 0.76" 1-5/8" 1-1/2"
4SA20FJ16 - -20 25 -16 1-5/8-12 3.38" 1.81" 0.76" 1-5/8" 2"
4SA16FJ20 - -16 31 -20 1-5/16-12 3.90" 1.72" 0.99" 1-13/16" 1-1/2"
4SA20FJ20 - -20 31 -20 1-5/8-12 4.00" 1.82" 0.99" 1-13/16" 2"
4SA24FJ20 - -24 31 -20 1-7/8-12 4.20" 2.03 " 0.99" 1-13/16" 2-1/4"
4SA24FJ24 - -24 38 -24 1-7/8-12 5.31" 2.24" 1.22" 2-1/4" 2-1/4"
4SA32FJ32 - -32 51 -32 2-1/2-12 5.75" 2.68" 1.66" - 2-7/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
