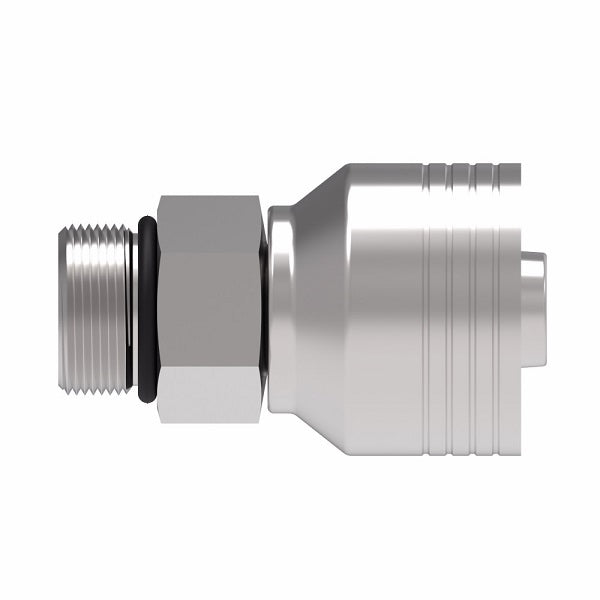

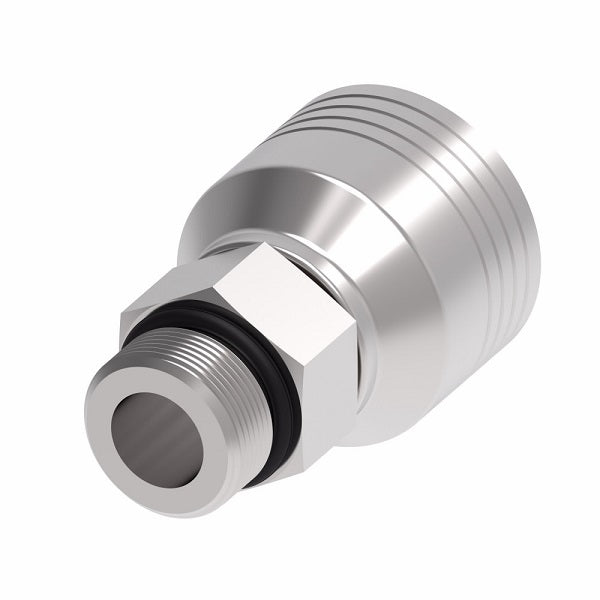

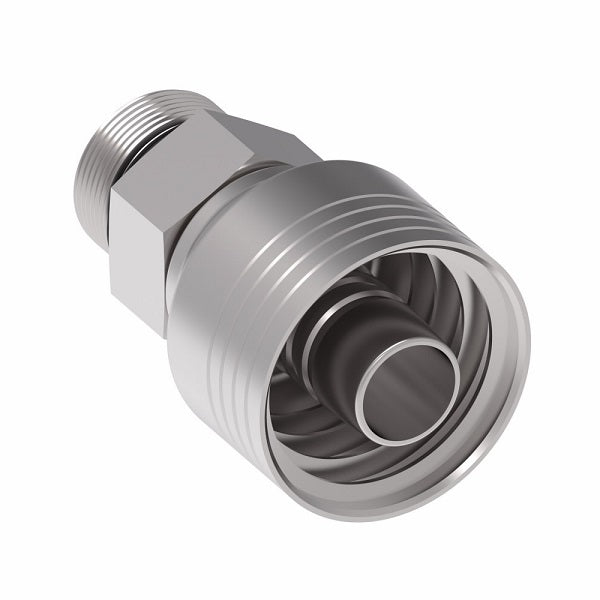

4SA10MB10 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -10 Hose Barb | Steel
4SA10MB10 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -10 Hose Barb | Steel | Pack of 10
4SA10MB10 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -10 Hose Barb | Steel | Pack of 10
4SA10MB10 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -10 Hose Barb | Steel

4SA10MB10 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -10 Male Boss O-Ring x -10 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$421.20 - $421.20
$421.20
$421.20 - $421.20
$421.20

Aeroquip® by Danfoss
4 Wire 4S Male O-Ring Boss Rigid Crimp Fitting (MB) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA10MB10 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Boss, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA6MB6 -06 - -06 9/16-18 1.84" 1.00" 0.26" 11/16"
4SA8MB6 -08 - -06 3/4-16 1.81" 0.98" 0.26" 7/8"
4SA8MB8 -08 - -08 3/4-16 2.26" 1.19" 0.38" 7/8"
4SA10MB8 -10 - -08 7/8-14 2.16" 1.09" 0.38" 1"
4SA10MB10 -10 - -10 7/8-14 2.34" 1.31" 0.50" 1"
4SA12MB10 -12 - -10 1-1/16-12 2.26" 1.23" 0.50" 1-1/4"
4SA12MB12 -12 19 -12 1-1/16-12 3.10" 1.67" 0.56" 1-1/4"
4SA16MB16 -16 25 -16 1-5/16-12 3.47" 1.91" 0.76" 1-1/2"
4SA20MB20 -20 31 -20 1-5/8-12 4.31" 2.14" 0.99" 1-7/8"
4SA24MB24 -24 38 -24 1-7/8-12 5.28" 2.21" 1.22" 2-1/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
