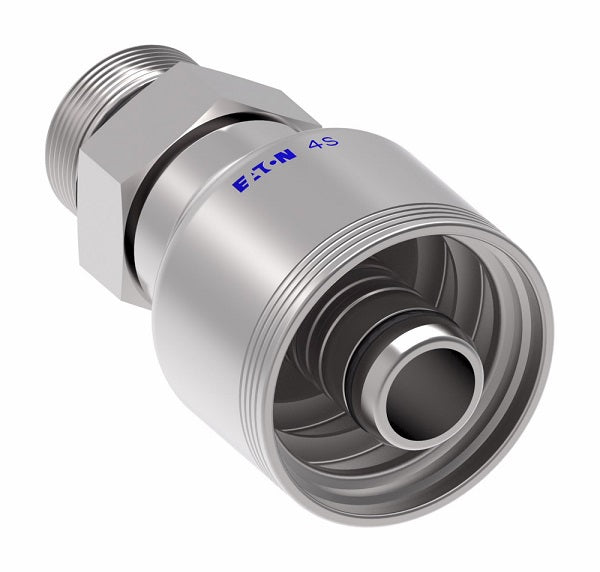

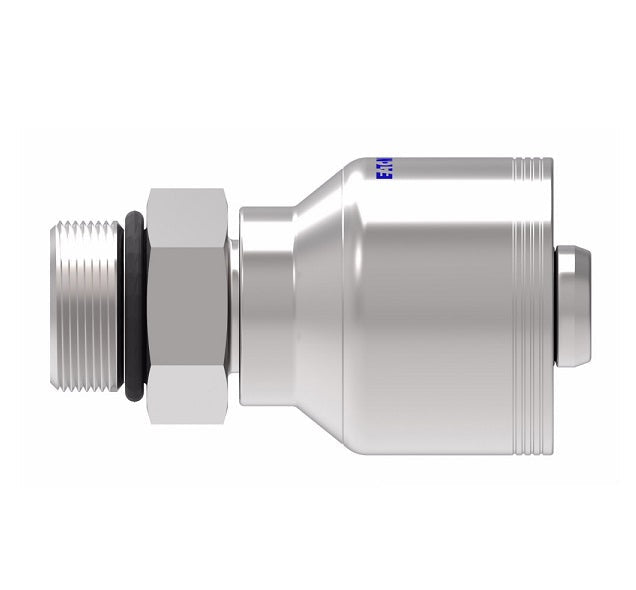

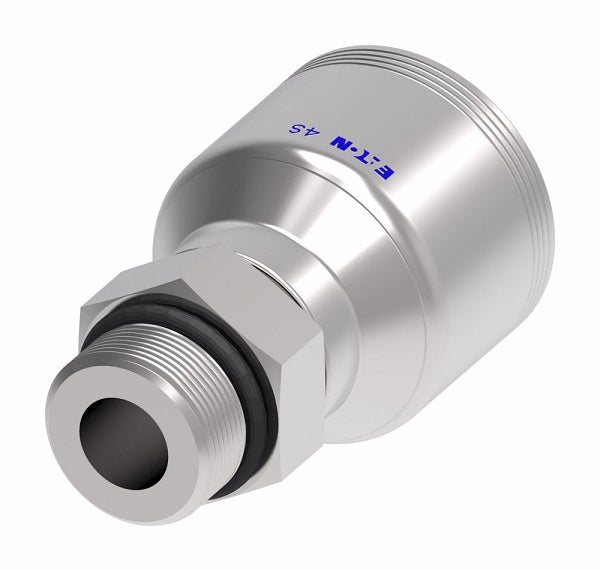

4SA8MB8 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel

4SA8MB8 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$291.40 - $291.40

$291.40

$291.40 - $291.40

$291.40

Aeroquip® by Danfoss
4 Wire 4S Male O-Ring Boss Rigid Crimp Fitting (MB) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4SA8MB8 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Boss, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4SA6MB6	-06	-	-06	9/16-18	1.84"	1.00"	0.26"	11/16"
4SA8MB6	-08	-	-06	3/4-16	1.81"	0.98"	0.26"	7/8"
4SA8MB8	-08	-	-08	3/4-16	2.26"	1.19"	0.38"	7/8"
4SA10MB8	-10	-	-08	7/8-14	2.16"	1.09"	0.38"	1"
4SA10MB10	-10	-	-10	7/8-14	2.34"	1.31"	0.50"	1"
4SA12MB10	-12	-	-10	1-1/16-12	2.26"	1.23"	0.50"	1-1/4"
4SA12MB12	-12	19	-12	1-1/16-12	3.10"	1.67"	0.56"	1-1/4"
4SA16MB16	-16	25	-16	1-5/16-12	3.47"	1.91"	0.76"	1-1/2"
4SA20MB20	-20	31	-20	1-5/8-12	4.31"	2.14"	0.99"	1-7/8"
4SA24MB24	-24	38	-24	1-7/8-12	5.28"	2.21"	1.22"	2-1/8"
