4SA16MB16 Aeroquip by Danfoss | 4 Wire 4S Male O-Ring Boss Rigid (MB) Crimp Fitting | -16 Male O-Ring Boss x -16 Hose Barb | Steel | Pack of 10

4SA16MB16 Aeroquip by Danfoss | 4 Wire 4S Male O-Ring Boss Rigid (MB) Crimp Fitting | -16 Male O-Ring Boss x -16 Hose Barb | Steel | Pack of 10

$507.30 - $507.30

$507.30

$507.30 - $507.30

$507.30

Aeroquip® by Danfoss

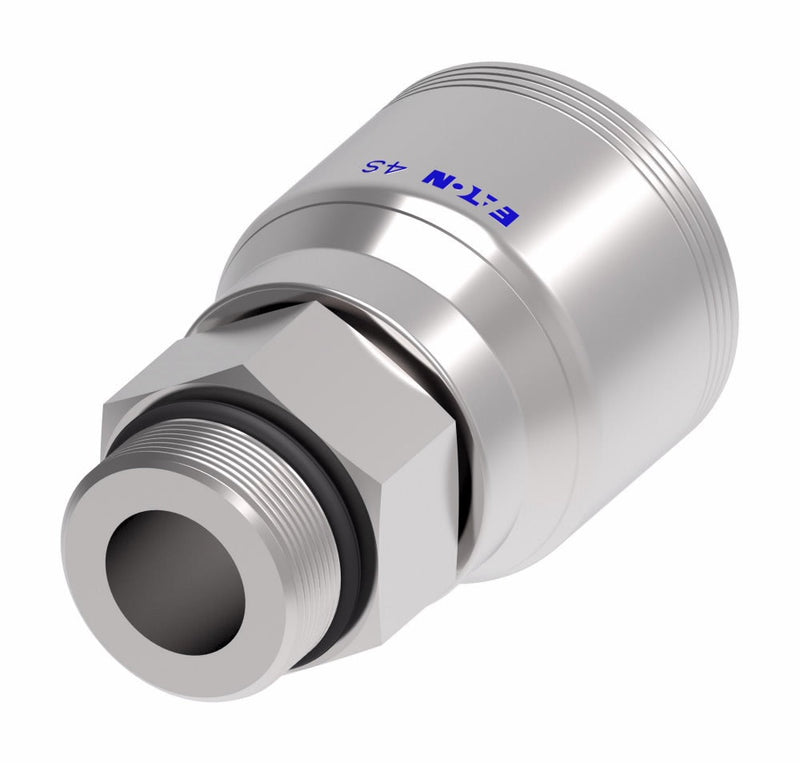

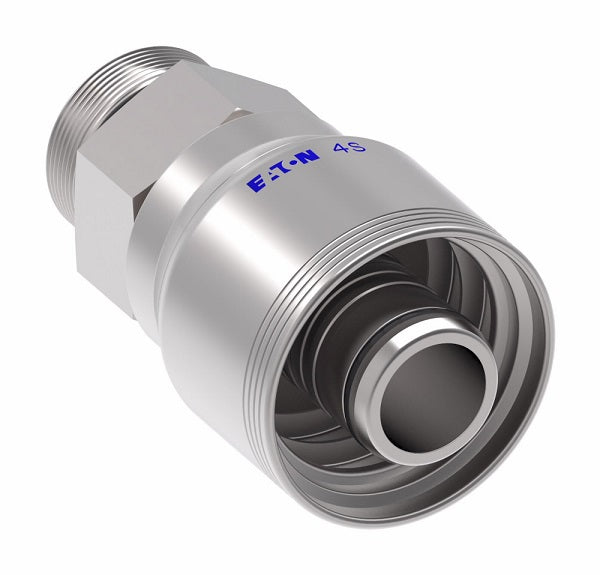

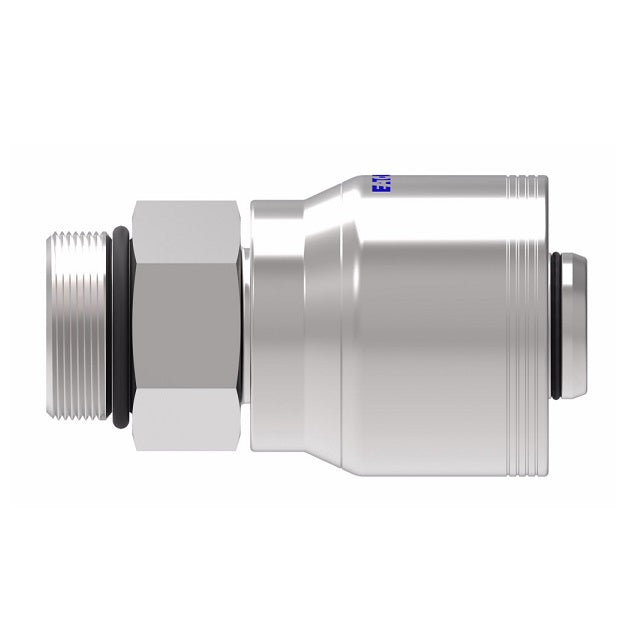

4 Wire 4S Male O-Ring Boss Rigid Crimp Fitting (MB) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA16MB16 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1in Male O-Ring Boss, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4SA6MB6	-06	-	-06	9/16-18	1.84"	1.00"	0.26"	11/16"
4SA8MB6	-08	-	-06	3/4-16	1.81"	0.98"	0.26"	7/8"
4SA8MB8	-08	-	-08	3/4-16	2.26"	1.19"	0.38"	7/8"
4SA10MB8	-10	-	-08	7/8-14	2.16"	1.09"	0.38"	1"
4SA10MB10	-10	-	-10	7/8-14	2.34"	1.31"	0.50"	1"
4SA12MB10	-12	-	-10	1-1/16-12	2.26"	1.23"	0.50"	1-1/4"
4SA12MB12	-12	19	-12	1-1/16-12	3.10"	1.67"	0.56"	1-1/4"
4SA16MB16	-16	25	-16	1-5/16-12	3.47"	1.91"	0.76"	1-1/2"
4SA20MB20	-20	31	-20	1-5/8-12	4.31"	2.14"	0.99"	1-7/8"
4SA24MB24	-24	38	-24	1-7/8-12	5.28"	2.21"	1.22"	2-1/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
