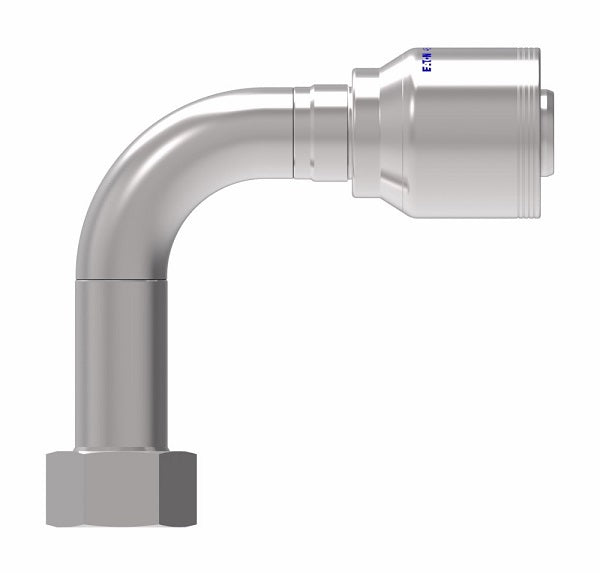

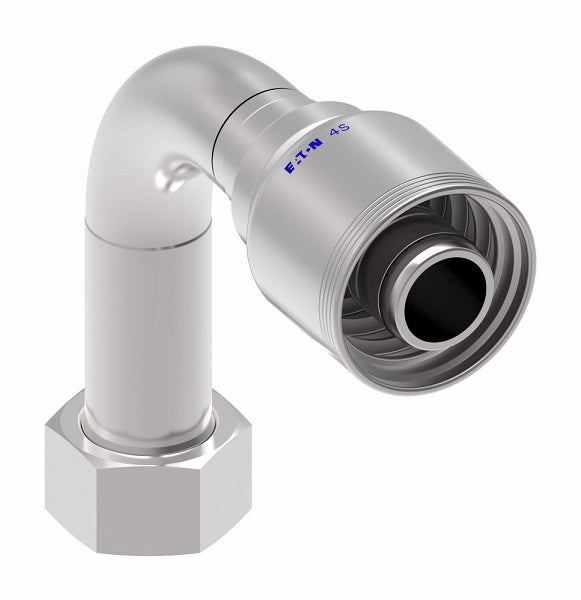

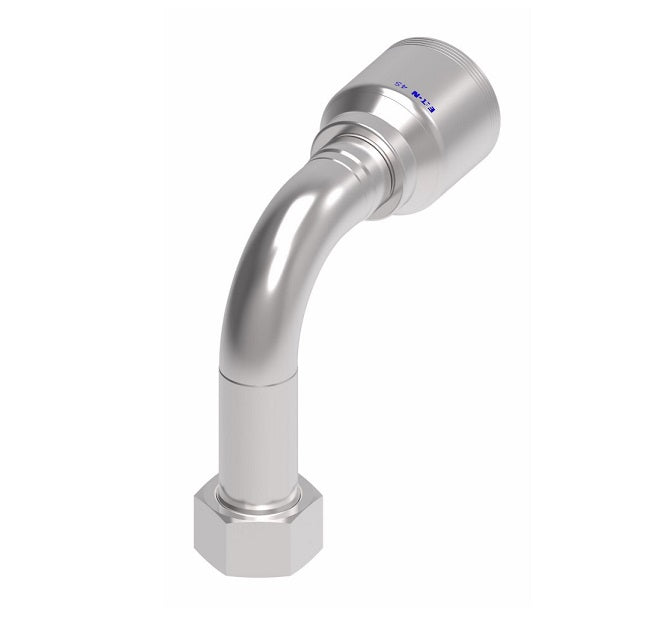

4SA20FRC20 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
4SA20FRC20 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
4SA20FRC20 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
4SA20FRC20 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

4SA20FRC20 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

$200.94 - $200.94
$200.94
$200.94 - $200.94
$200.94

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA20FRC20 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRC6 -06 - -06 11/16-16 2.27" 1.34" 0.24" 2.13" 13/16"
4SA8FRC6 -08 - -06 13/16-16 2.55" 1.71" 0.26" 2.55" 15/16"
4SA8FRC8 -08 - -08 13/16-16 2.87" 1.67" 0.33" 2.51" 15/16"
4SA10FRC8 -10 - -08 1-14 2.98" 1.91" 0.38" 2.76" 1-1/8"
4SA10FRC10 -10 - -10 1-14 3.08" 1.91" 0.44" 2.76" 1-1/8"
4SA10FRC12 -10 19 -12 1-14 3.60" 2.18" 0.56" 2.76" 1-1/8"
4SA12FRC12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 3.78" 1-3/8"
4SA16FRC12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 4.49" 1-5/8"
4SA16FRC16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 4.49" 1-5/8"
4SA20FRC20 -20 31 -20 1-11/16-12 6.02" 3.85" 0.99" 5.08" 1-7/8"
4SA24FRC20 -24 31 -20 2-12 6.02" 3.85" 0.99" 5.55" 2-1/4"
4SA24FRC24 -24 38 -24 2-12 6.02" 3.85" 0.99" 5.55" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
