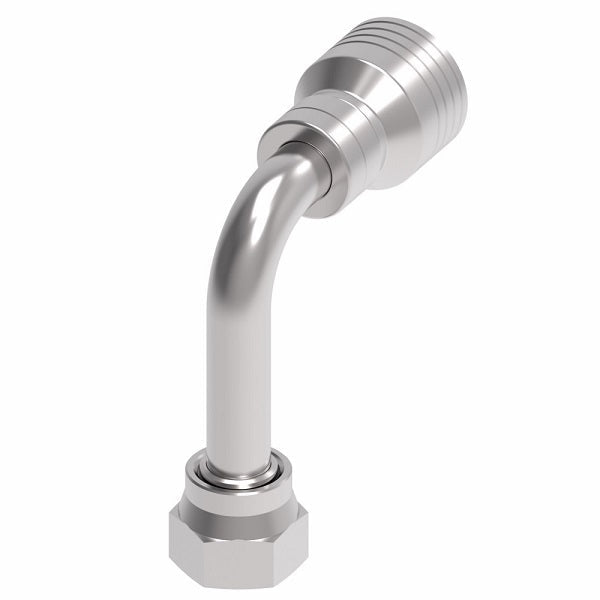

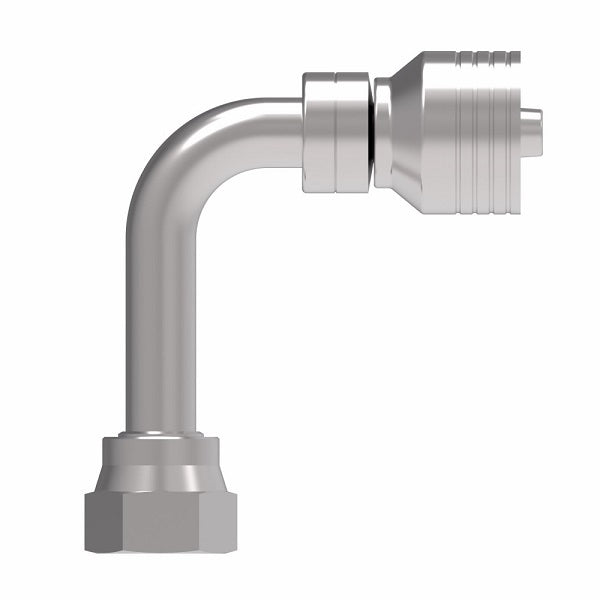

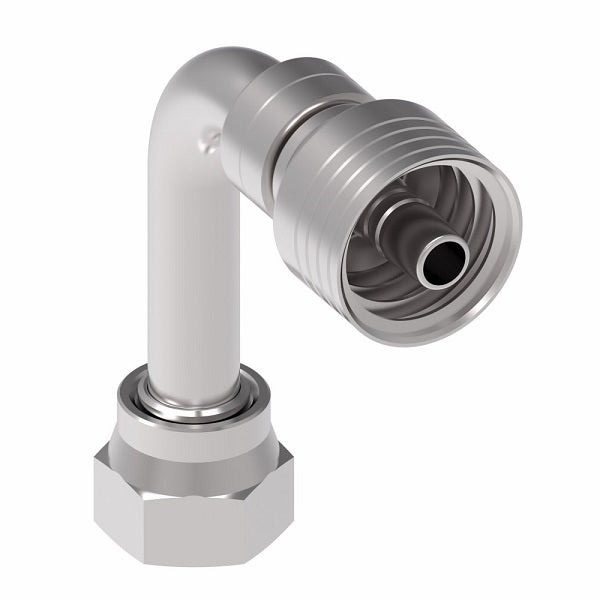

4SA8FRC6 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel
4SA8FRC6 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10
4SA8FRC6 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10
4SA8FRC6 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel

4SA8FRC6 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,593.60 - $1,593.60
$1,593.60
$1,593.60 - $1,593.60
$1,593.60

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA8FRC6 Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRC6 -06 - -06 11/16-16 2.27" 1.34" 0.24" 2.13" 13/16"
4SA8FRC6 -08 - -06 13/16-16 2.55" 1.71" 0.26" 2.55" 15/16"
4SA8FRC8 -08 - -08 13/16-16 2.87" 1.67" 0.33" 2.51" 15/16"
4SA10FRC8 -10 - -08 1-14 2.98" 1.91" 0.38" 2.76" 1-1/8"
4SA10FRC10 -10 - -10 1-14 3.08" 1.91" 0.44" 2.76" 1-1/8"
4SA10FRC12 -10 19 -12 1-14 3.60" 2.18" 0.56" 2.76" 1-1/8"
4SA12FRC12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 3.78" 1-3/8"
4SA16FRC12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 4.49" 1-5/8"
4SA16FRC16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 4.49" 1-5/8"
4SA20FRC20 -20 31 -20 1-11/16-12 6.02" 3.85" 0.99" 5.08" 1-7/8"
4SA24FRC20 -24 31 -20 2-12 6.02" 3.85" 0.99" 5.55" 2-1/4"
4SA24FRC24 -24 38 -24 2-12 6.02" 3.85" 0.99" 5.55" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
