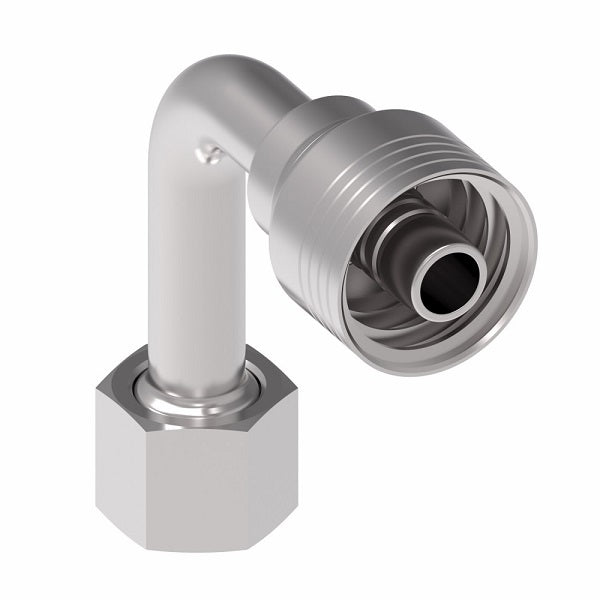

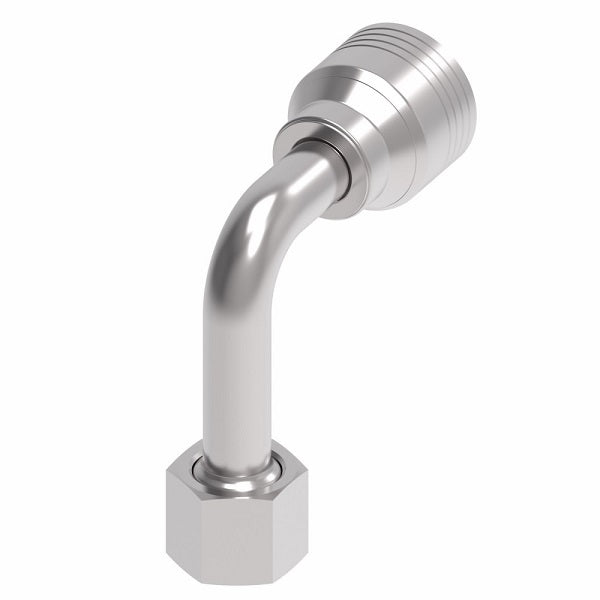

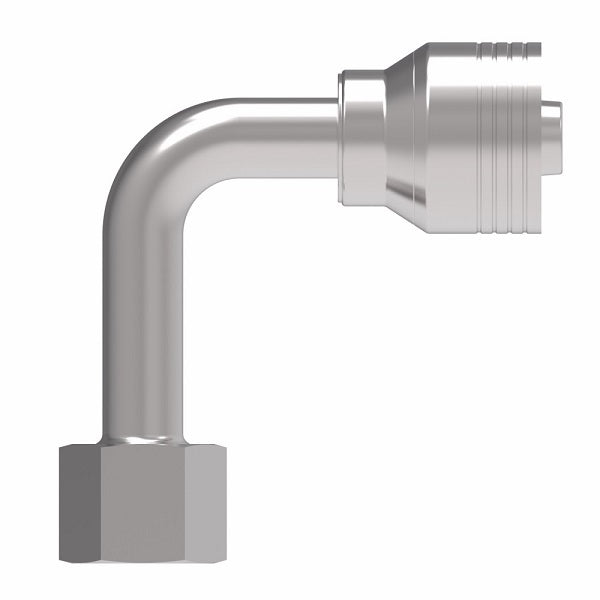

4SA8FRC8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
4SA8FRC8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel | Pack of 10
4SA8FRC8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel | Pack of 10
4SA8FRC8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

4SA8FRC8 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$525.20 - $525.20
$525.20
$525.20 - $525.20
$525.20

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA8FRC8 Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRC6 -06 - -06 11/16-16 2.27" 1.34" 0.24" 2.13" 13/16"
4SA8FRC6 -08 - -06 13/16-16 2.55" 1.71" 0.26" 2.55" 15/16"
4SA8FRC8 -08 - -08 13/16-16 2.87" 1.67" 0.33" 2.51" 15/16"
4SA10FRC8 -10 - -08 1-14 2.98" 1.91" 0.38" 2.76" 1-1/8"
4SA10FRC10 -10 - -10 1-14 3.08" 1.91" 0.44" 2.76" 1-1/8"
4SA10FRC12 -10 19 -12 1-14 3.60" 2.18" 0.56" 2.76" 1-1/8"
4SA12FRC12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 3.78" 1-3/8"
4SA16FRC12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 4.49" 1-5/8"
4SA16FRC16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 4.49" 1-5/8"
4SA20FRC20 -20 31 -20 1-11/16-12 6.02" 3.85" 0.99" 5.08" 1-7/8"
4SA24FRC20 -24 31 -20 2-12 6.02" 3.85" 0.99" 5.55" 2-1/4"
4SA24FRC24 -24 38 -24 2-12 6.02" 3.85" 0.99" 5.55" 2-1/4"
