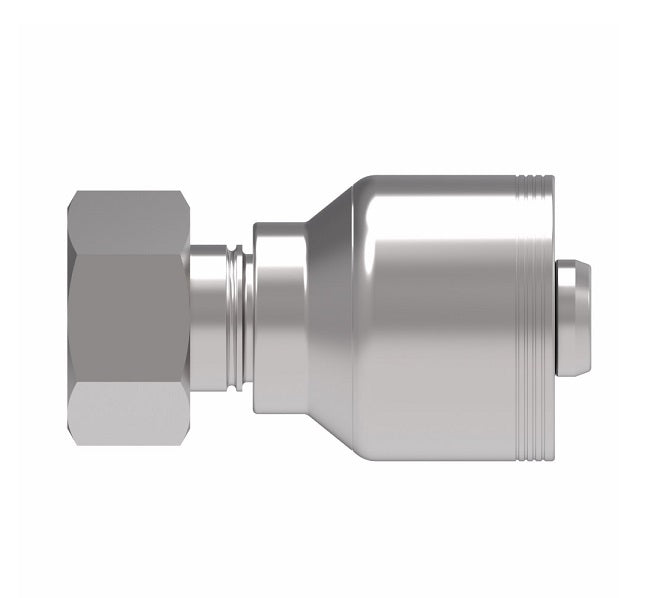

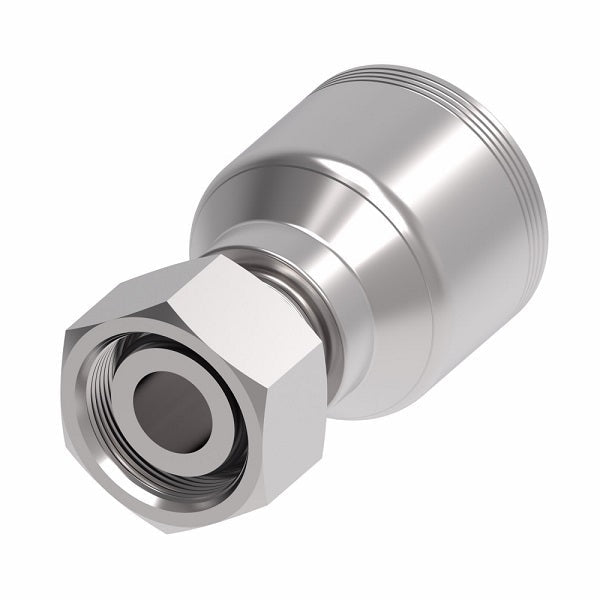

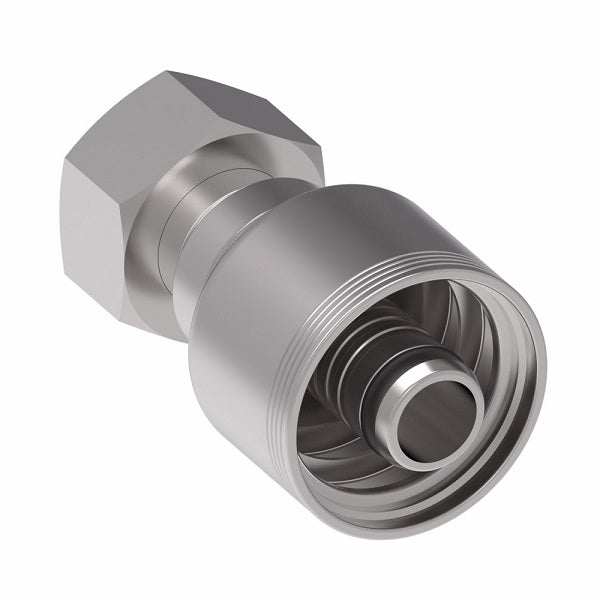

4S20DL12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L22 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

4S20DL12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) (DL) Crimp Fitting | L22 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

$65.85 - $65.85
$65.85
$65.85 - $65.85
$65.85

Aeroquip® by Danfoss
4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) Crimp Fitting (DL) - Straight

l.Rh DKO (Light)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4S20DL12 Danfoss
Shape (Orientation): Straight
Ends Configuration: L22 Female DIN, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D EØ Hex 1
DN Dash Size
4S8DL6 10 - -06 M16 x 1.5 1.99" 0.99" 0.26" 0.75"
4S10DL6 12 - -06 M18 x 1.5 2.01" 1.02" 0.26" 0.87"
4S12DL8 15 - -08 M22 x 1.5 2.30" 1.13" 0.38" 1.06"
4S16DL10 18 - -10 M26 x 1.5 2.33" 1.17" 0.50" 1.26"
4S20DL8 - - -08 M30X2 - - - -
4S20DL12 22 19 -12 M30X2 2.99" 1.56" 0.56" 36mm
4S25DL16 28 25 -16 M36X2 3.14" 1.59" 0.76" 41mm
4S32DL20 35 31 -20 M45X2 3.96" 1.79" 0.99" 50mm
