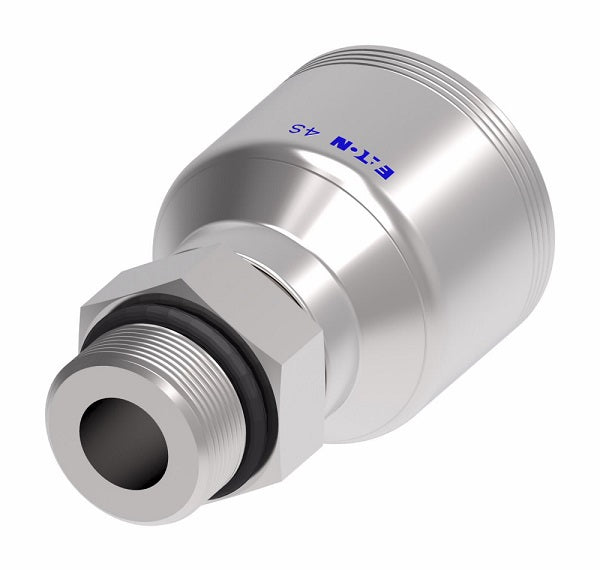

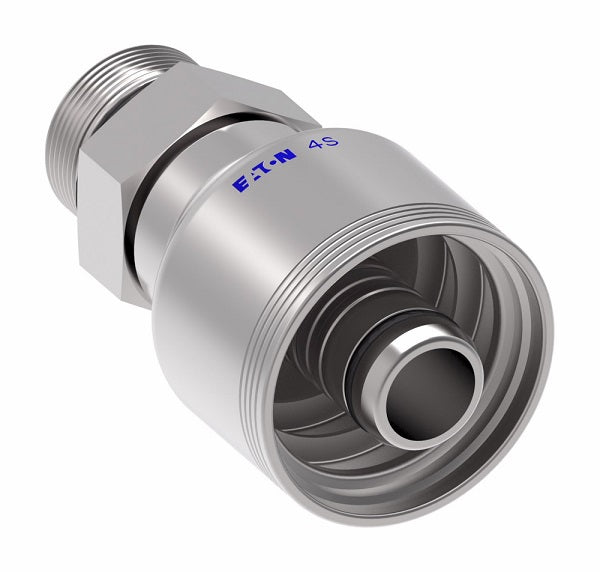

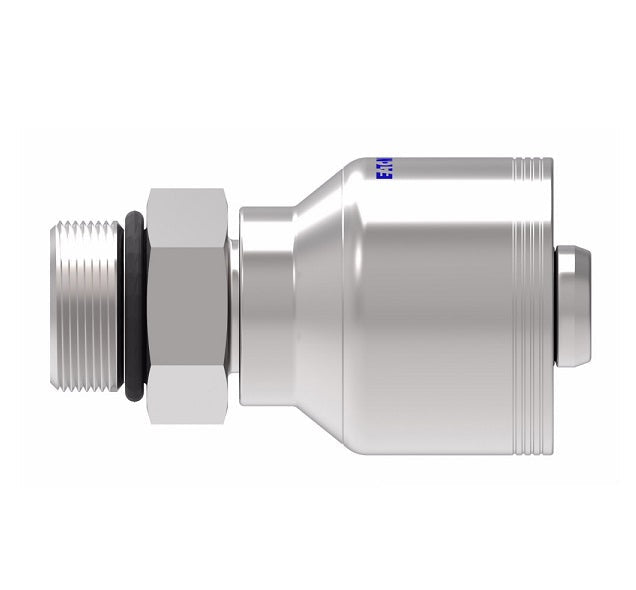

4SA12MB12 Aeroquip by Danfoss | 4 Wire 4S Male O-Ring Boss Rigid (MB) Crimp Fitting | -12 Male O-Ring Boss x -12 Hose Barb | Steel | Pack of 10
4SA12MB12 Aeroquip by Danfoss | 4 Wire 4S Male O-Ring Boss Rigid (MB) Crimp Fitting | -12 Male O-Ring Boss x -12 Hose Barb | Steel | Pack of 10
4SA12MB12 Aeroquip by Danfoss | 4 Wire 4S Male O-Ring Boss Rigid (MB) Crimp Fitting | -12 Male O-Ring Boss x -12 Hose Barb | Steel | Pack of 10

4SA12MB12 Aeroquip by Danfoss | 4 Wire 4S Male O-Ring Boss Rigid (MB) Crimp Fitting | -12 Male O-Ring Boss x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$620.20 - $620.20
$620.20
$620.20 - $620.20
$620.20

Aeroquip® by Danfoss
4 Wire 4S Male O-Ring Boss Rigid Crimp Fitting (MB) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4SA12MB12 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Boss, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4SA6MB6 -06 - -06 9/16-18 1.84" 1.00" 0.26" 11/16"
4SA8MB6 -08 - -06 3/4-16 1.81" 0.98" 0.26" 7/8"
4SA8MB8 -08 - -08 3/4-16 2.26" 1.19" 0.38" 7/8"
4SA10MB8 -10 - -08 7/8-14 2.16" 1.09" 0.38" 1"
4SA10MB10 -10 - -10 7/8-14 2.34" 1.31" 0.50" 1"
4SA12MB10 -12 - -10 1-1/16-12 2.26" 1.23" 0.50" 1-1/4"
4SA12MB12 -12 19 -12 1-1/16-12 3.10" 1.67" 0.56" 1-1/4"
4SA16MB16 -16 25 -16 1-5/16-12 3.47" 1.91" 0.76" 1-1/2"
4SA20MB20 -20 31 -20 1-5/8-12 4.31" 2.14" 0.99" 1-7/8"
4SA24MB24 -24 38 -24 1-7/8-12 5.28" 2.21" 1.22" 2-1/8"
