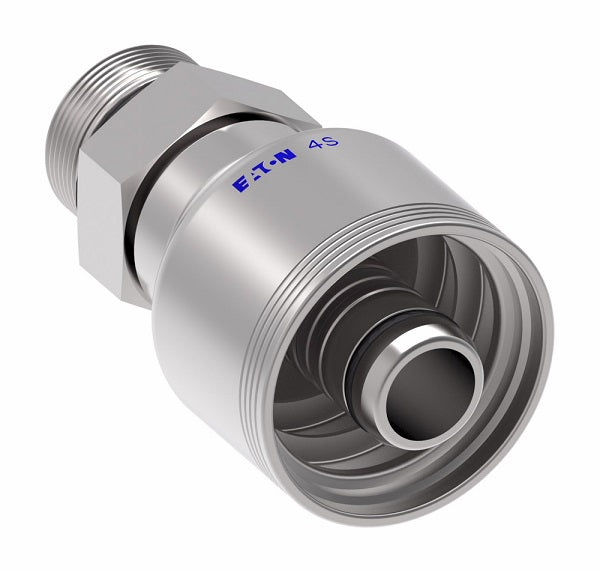

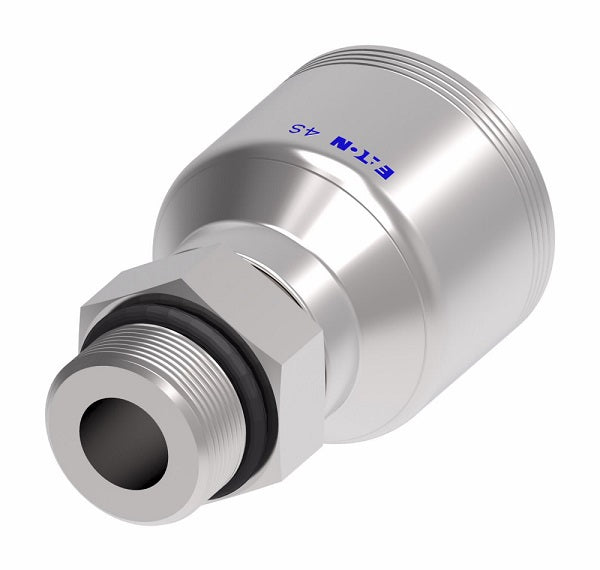

4SA8MB6 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -06 Hose Barb | Steel

4SA8MB6 Aeroquip by Danfoss | 4 Wire 4S Male Boss O-Ring (MB) Crimp Fitting | -08 Male Boss O-Ring x -06 Hose Barb | Steel | Pack of 10

$533.10 - $533.10

$533.10

$533.10 - $533.10

$533.10

Aeroquip® by Danfoss
4 Wire 4S Male O-Ring Boss Rigid Crimp Fitting (MB) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4SA8MB6 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Boss, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
4SA6MB6	-06	-	-06	9/16-18	1.84"	1.00"	0.26"	11/16"
4SA8MB6	-08	-	-06	3/4-16	1.81"	0.98"	0.26"	7/8"
4SA8MB8	-08	-	-08	3/4-16	2.26"	1.19"	0.38"	7/8"
4SA10MB8	-10	-	-08	7/8-14	2.16"	1.09"	0.38"	1"
4SA10MB10	-10	-	-10	7/8-14	2.34"	1.31"	0.50"	1"
4SA12MB10	-12	-	-10	1-1/16-12	2.26"	1.23"	0.50"	1-1/4"
4SA12MB12	-12	19	-12	1-1/16-12	3.10"	1.67"	0.56"	1-1/4"
4SA16MB16	-16	25	-16	1-5/16-12	3.47"	1.91"	0.76"	1-1/2"
4SA20MB20	-20	31	-20	1-5/8-12	4.31"	2.14"	0.99"	1-7/8"
4SA24MB24	-24	38	-24	1-7/8-12	5.28"	2.21"	1.22"	2-1/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
