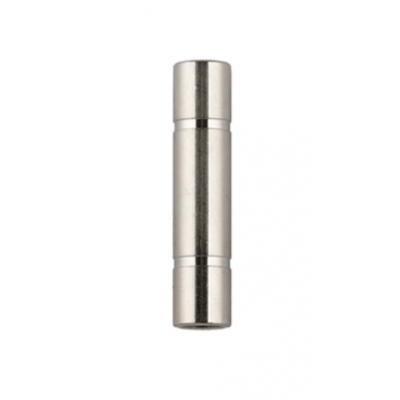

50625-12 AIGNEP | 57 Series | Double Union | 12mm Tube x 12mm Tube | Pack of 10

50625-12 by AIGNEP | 57 Series | Double Union | 12mm Tube x 12mm Tube | Pack of 10

Save $7.92

$19.80

$19.80 - $19.80

$19.80

$11.88

$11.88 - $11.88

$11.88

Package Quantity: 10 ea

Specifications for Variant SKU: 50625-12 AIGNEP \| 10 \|
Series:	57 Series
Ends Configuration:	12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s):	Polyamide

Double Joint

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass

Product Number	Tube	L
50625-4	4 mm	31 mm
50625-5	5 mm	33 mm
50625-6	6 mm	34 mm
50625-8	8 mm	36 mm
50625-10	10 mm	45 mm
50625-12	12 mm	50 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
