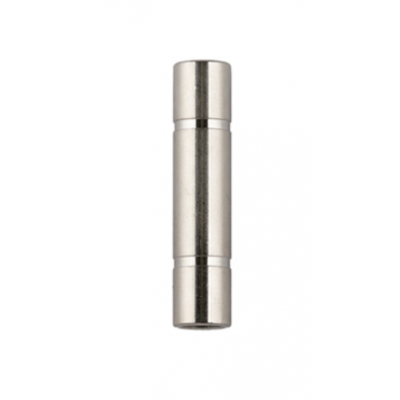

50625-4 AIGNEP | 57 Series | Double Union | 4mm Tube x 4mm Tube | Pack of 10

50625-4 by AIGNEP | 57 Series | Double Union | 4mm Tube x 4mm Tube | Pack of 10

Save $4.30

$10.75

$10.75 - $10.75

$10.75

$6.45

$6.45 - $6.45

$6.45

Package Quantity: 10 ea

Specifications for Variant SKU: 50625-4 AIGNEP \| 10 \|
Series:	57 Series
Ends Configuration:	4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s):	Polyamide

Double Joint

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass

Product Number	Tube	L
50625-4	4 mm	31 mm
50625-5	5 mm	33 mm
50625-6	6 mm	34 mm
50625-8	8 mm	36 mm
50625-10	10 mm	45 mm
50625-12	12 mm	50 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
