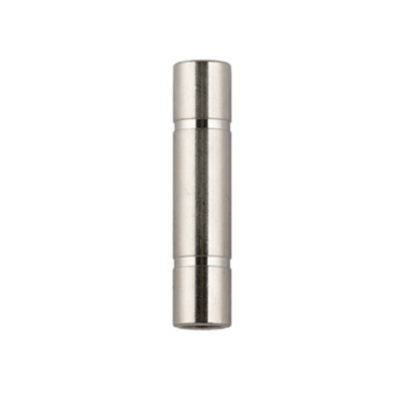

50625-6 AIGNEP | 57 Series | Double Union | 6mm Tube x 6mm Tube | Pack of 10

50625-6 by AIGNEP | 57 Series | Double Union | 6mm Tube x 6mm Tube | Pack of 10

Save $4.69

$11.73

$11.73 - $11.73

$11.73

$7.04

$7.04 - $7.04

$7.04

Package Quantity: 10 ea

Specifications for Variant SKU: 50625-6 AIGNEP \| 10 \|
Series:	57 Series
Ends Configuration:	6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s):	Polyamide

Double Joint

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass

Product Number	Tube	L
50625-4	4 mm	31 mm
50625-5	5 mm	33 mm
50625-6	6 mm	34 mm
50625-8	8 mm	36 mm
50625-10	10 mm	45 mm
50625-12	12 mm	50 mm
