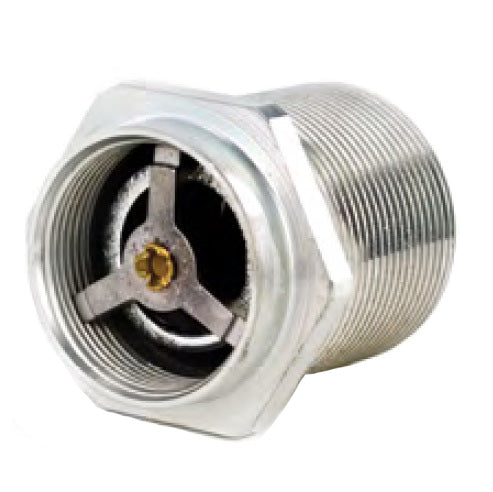

5400-S2-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant | Male Half | 1" Body Size | Neoprene Seal | Carbon Steel

$120.46 - $120.46

$120.46

$120.46 - $120.46

$120.46

Hansen® by Danfoss
Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant

Quick Disconnect for Refrigerant Applications.

Danfoss Hansen 5400 Series low air inclusion product line is designed for air conditioning, refrigerant, gaseous and fluid transfer applications.

Specifications for Variant SKU: 5400-S2-16 Danfoss
Brand:	Hansen
Series:	5400 Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel
Seal Material(s):	Neoprene

Features:	Brazed or threaded end connections for versatility of installation on tubing or hose. Tubular valve construction for low fluid loss and air inclusion. Thread together design allows connection and disconnection against pressure. Lock washer and jam nut standard for optional bulkhead mounting.
Applications & Markets:	Mobile air conditioning and refrigerant Thermal management
Materials:	Standard body material: Carbon Steel Standard seal material: Neoprene Dura-Kote™ plating for excellent corrosion resistance.

Coupling Size	Max. Operating Pressure Connected		Min. Burst Pressure Connected		Max. Operating Pressure Disconnected				Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
Coupling Size	Max. Operating Pressure Connected		Min. Burst Pressure Connected		Male Half		Female Half		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
1/4"	207 bar	3,000 psi	621 bar	9,000 psi	172 bar	2,500 psi	34 bar	500 psi	28 in./Hg	8 lpm	2 gpm	.10 cc. Max.	.05 cc. Max.
1/2"	121 bar	1,750 psi	359 bar	5,200 psi	121 bar	1,750 psi	28 bar	400 psi	28 in./Hg	53 lpm	14 gpm	.10 cc. Max.	.10 cc. Max.
3/4"	48 bar	700 psi	145 bar	2,100 psi	55 bar	800 psi	28 bar	400 psi	28 in./Hg	132 lpm	35 gpm	.30 cc. Max.	.10 cc. Max.
1"	48 bar	700 psi	145 bar	2,100 psi	48 bar	700 psi	21 bar	300 psi	28 in./Hg	284 lpm	75 gpm	.50 cc. Max.	.20 cc. Max.

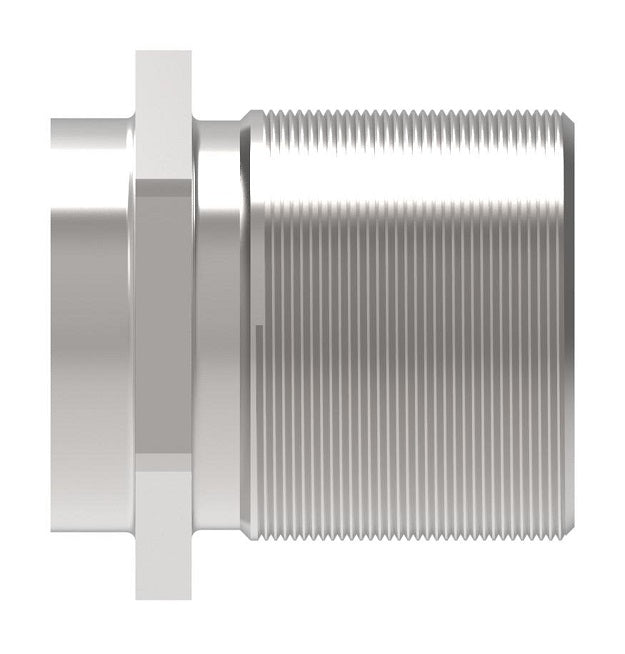

Male Half (Figure 1)				Female Half (Figure 2)
5400 Series \| No Adapters Added
Part Number	Coupling Type	Body Size	Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Type	Figure	A	B	Hex 1	Hex 2
5400-S2-4	Male	1/4"	No Adapter	1	1.08" (27.4mm)	0.83" (21.1mm)	(19.1mm)	0.75"
5400-S5-4	Female	1/4"	No Adapter	2	1.13" (28.7mm)	0.83" (21.1mm)	(16.0mm)	0.63"

5400-S2-8	Male	1/2"	No Adapter	1	1.37" (34.8mm)	1.26" (32.0mm)	(29.0mm)	1.14"
5400-S5-8	Female	1/2"	No Adapter	2	1.60" (40.6mm)	1.30" (33.0mm)	(26.0mm)	1.02"

5400-S2-12	Male	3/4"	No Adapter	1	1.74" (44.2mm)	1.83" (46.4mm)	(41.0mm)	1.64"
5400-S5-12	Female	3/4"	No Adapter	2	2.17" (55.1mm)	1.77" (45.0mm)	(35.0mm)	1.38"

5400-S2-16	Male	1"	No Adapter	1	1.83" (46.5mm)	2.10" (53.0mm)	(48.0mm)	1.89"
5400-S5-16	Female	1"	No Adapter	2	2.41" (61.1mm)	2.20" (56.0mm)	(45.0mm)	1.77"

Adapters & Fittings to Add
JIC Adapter
	Body Size	Brass Part Number	Steel Part Number
	1/4"	202220-4-4B	202220-4-4S
	1/4"	-	202220-6-4S
	1/2"	-	202220-6-8S
	1/2"	202220-8-8B	202220-8-8S
	3/4"	-	202220-10-12S
	3/4"	-	202220-12-12S
	3/4"	-	202220-16-16S

Braze Adapter
	Body Size	Brass Part Number	Steel Part Number
	1/4"	202208-4-4B	-
	1/2"	202208-4-8B	-
	1/4"	202208-6-4B	-
	1/2"	202208-6-8B	-
	1/2"	202208-8-8B	-
	3/4"	202208-10-12B	202208-10-12S
	1/2"	202208-10-8B	202208-10-8S
	3/4"	202208-12-12B	-
	3/4"	202208-14-12B	-
	1"	202208-14-16B	-
	1"	202208-16-16B	-
	1"	202208-18-16B	-
	1"	202208-22-16B	-

SAE 100R5 Hose Fitting
	Body Size	Brass Part Number	Steel Part Number
	1/2"	-	487-8-6S
	1/2"	-	487-8-8S
	3/4"	-	487-12-12S
	1"	-	487-16-16S

5400 Series \| Dust Caps & Dust Plugs

Dust Cap with Gasket	Dust Plug with Gasket
Dust Cap with Gasket Part Number	Dust Plug with Gasket Part Number	Body Size
5400-S6-4	5400-S8-4	1/4"
5400-S6-8	5400-S8-8	1/2"
5400-S6-12	5400-S8-12	3/4"
5400-S6-16	5400-S8-16	1"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
