62040-1/4"-1/2" AIGNEP | 60/62 Series | Stainless Steel Reducer | BSPT 1/4" Male x 1/2" Female BSPP
62040-1/4"-1/2 by AIGNEP | 60/62 Series | Reducer | BSPT 1/4" Male x 1/2" Female BSPP | Stainless Steel
62040-1/4"-1/2" AIGNEP | 60/62 Series | Stainless Steel Reducer | BSPT 1/4" Male x 1/2" Female BSPP

62040-1/4"-1/2 by AIGNEP | 60/62 Series | Reducer | BSPT 1/4" Male x 1/2" Female BSPP | Stainless Steel

Save $9.02 Save $9.02
$28.66
$28.66 - $28.66
$28.66
$19.64
$19.64 - $19.64
$19.64
Specifications for Variant SKU: 62040-1/4-1/2 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male BSPT, 1/2in Female BSPP
Material(s): Stainless Steel

Reducer - Male BSPT x Female BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

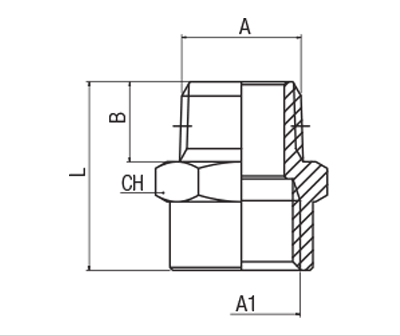

Product Number A1 BSPP A BSPT B L CH
62040-1/8-1/4 1/4" 1/8" 7.5 mm 22 mm 17 mm
62040-1/4-3/8 3/8" 1/4" 11 mm 27 mm 22 mm
62040-1/4-1/2 1/2" 1/4" 11 mm 30 mm 24 mm
62040-3/8-1/2 1/2" 3/8" 11.5 mm 30.5 mm 24 mm
62040-1/2-3/4 3/4" 1/2" 14 mm 30.5 mm 32 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
