62040-1/4"-3/8" AIGNEP | 60/62 Series | Stainless Steel Reducer | BSPT 1/4" Male x 3/8" Female BSPP

62040-1/4"-3/8 by AIGNEP | 60/62 Series | Reducer | BSPT 1/4" Male x 3/8" Female BSPP | Stainless Steel

Name: 62040-1/4"-3/8 by AIGNEP | 60/62 Series | Reducer | BSPT 1/4" Male x 3/8" Female BSPP | Stainless Steel
Brand: AIGNEP
SKU: 62040-1/4-3/8 AIGNEP
Price: 15.92 USD
Availability: InStock

Save $8.10

$24.02

$24.02 - $24.02

$24.02

$15.92

$15.92 - $15.92

$15.92

Specifications for Variant SKU: 62040-1/4-3/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male BSPT, 3/8in Female BSPP
Material(s):	Stainless Steel

Reducer - Male BSPT x Female BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

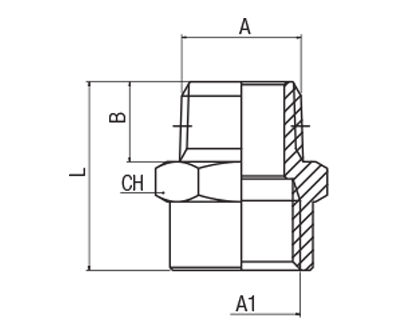

Product Number	A1 BSPP	A BSPT	B	L	CH
62040-1/8-1/4	1/4"	1/8"	7.5 mm	22 mm	17 mm
62040-1/4-3/8	3/8"	1/4"	11 mm	27 mm	22 mm
62040-1/4-1/2	1/2"	1/4"	11 mm	30 mm	24 mm
62040-3/8-1/2	1/2"	3/8"	11.5 mm	30.5 mm	24 mm
62040-1/2-3/4	3/4"	1/2"	14 mm	30.5 mm	32 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
