62040-3/8"-1/2" AIGNEP | 60/62 Series | Stainless Steel Reducer | BSPT 3/8" Male x 1/2" Female BSPP

62040-3/8"-1/2 by AIGNEP | 60/62 Series | Reducer | BSPT 3/8" Male x 1/2" Female BSPP | Stainless Steel

Name: 62040-3/8"-1/2 by AIGNEP | 60/62 Series | Reducer | BSPT 3/8" Male x 1/2" Female BSPP | Stainless Steel
Brand: AIGNEP
SKU: 62040-3/8-1/2 AIGNEP
Price: 14.81 USD
Availability: InStock

Save $9.87

$24.68

$24.68 - $24.68

$24.68

$14.81

$14.81 - $14.81

$14.81

Specifications for Variant SKU: 62040-3/8-1/2 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male BSPT, 1/2in Female BSPP
Material(s):	Stainless Steel

Reducer - Male BSPT x Female BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

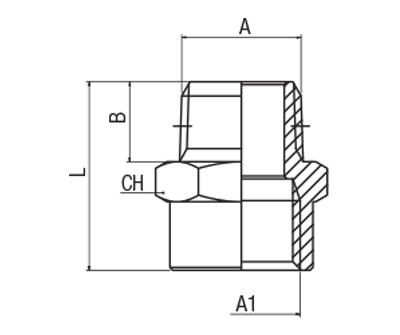

Product Number	A1 BSPP	A BSPT	B	L	CH
62040-1/8-1/4	1/4"	1/8"	7.5 mm	22 mm	17 mm
62040-1/4-3/8	3/8"	1/4"	11 mm	27 mm	22 mm
62040-1/4-1/2	1/2"	1/4"	11 mm	30 mm	24 mm
62040-3/8-1/2	1/2"	3/8"	11.5 mm	30.5 mm	24 mm
62040-1/2-3/4	3/4"	1/2"	14 mm	30.5 mm	32 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
