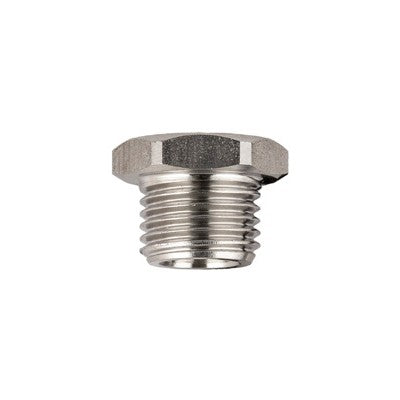

62320-1/2" AIGNEP | 60/62 Series | Male Plug | 1/2" Male BSPP

62320-1/2 by AIGNEP | 60/62 Series | Male Plug | 1/2" Male BSPP

Name: 62320-1/2 by AIGNEP | 60/62 Series | Male Plug | 1/2" Male BSPP
Brand: AIGNEP
SKU: 62320-1/2 AIGNEP
Price: 12.13 USD
Availability: InStock

Save $0.13

$12.26

$12.26 - $12.26

$12.26

$12.13

$12.13 - $12.13

$12.13

Quantity

Specifications for Variant SKU: 62320-1/2 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male BSPP
Material(s):	Stainless Steel

Male Plug - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

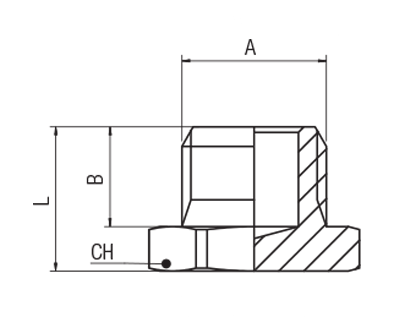

Product Number	A BSPP	B	L	CH
62320-1/8	1/8"	6.5 mm	10 mm	14 mm
62320-1/4	1/4"	9 mm	13 mm	17 mm
62320-3/8	3/8"	9.5 mm	13.5 mm	19 mm
62320-1/2	1/2"	10 mm	14.5 mm	24 mm
62320-3/4	3/4"	11 mm	16 mm	30 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
