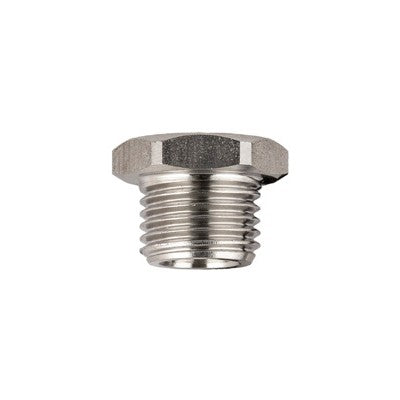

62320-3/4" AIGNEP | 60/62 Series | Male Plug | 3/4" Male BSPP

62320-3/4 by AIGNEP | 60/62 Series | Male Plug | 3/4" Male BSPP

Name: 62320-3/4 by AIGNEP | 60/62 Series | Male Plug | 3/4" Male BSPP
Brand: AIGNEP
SKU: 62320-3/4 AIGNEP
Price: 15.15 USD
Availability: InStock

Save $0.15

$15.30

$15.30 - $15.30

$15.30

$15.15

$15.15 - $15.15

$15.15

Quantity

Specifications for Variant SKU: 62320-3/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male BSPP
Material(s):	Stainless Steel

Male Plug - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

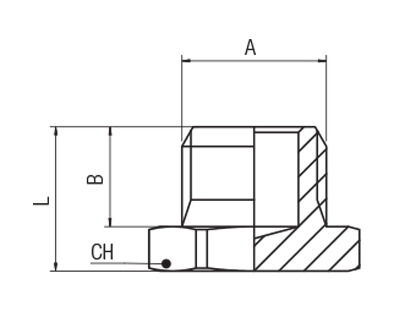

Product Number	A BSPP	B	L	CH
62320-1/8	1/8"	6.5 mm	10 mm	14 mm
62320-1/4	1/4"	9 mm	13 mm	17 mm
62320-3/8	3/8"	9.5 mm	13.5 mm	19 mm
62320-1/2	1/2"	10 mm	14.5 mm	24 mm
62320-3/4	3/4"	11 mm	16 mm	30 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.

Shop Parts by AIGNEP
