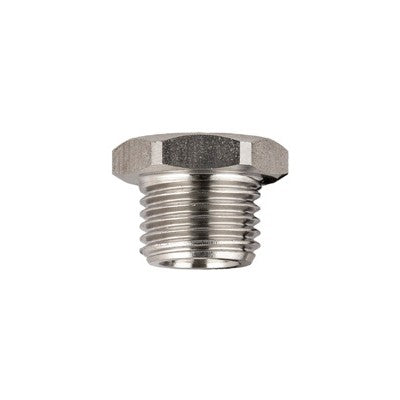

62320-3/8" AIGNEP | 60/62 Series | Male Plug | 3/8" Male BSPP
62320-3/8 by AIGNEP | 60/62 Series | Male Plug | 3/8" Male BSPP
62320-3/8" AIGNEP | 60/62 Series | Male Plug | 3/8" Male BSPP

62320-3/8 by AIGNEP | 60/62 Series | Male Plug | 3/8" Male BSPP

Save $0.11 Save $0.11
$9.86
$9.86 - $9.86
$9.86
$9.75
$9.75 - $9.75
$9.75
Specifications for Variant SKU: 62320-3/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male BSPP
Material(s): Stainless Steel

Male Plug - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

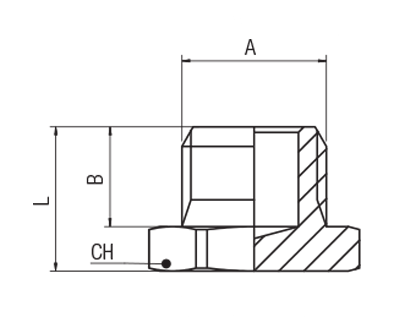

Product Number A BSPP B L CH
62320-1/8 1/8" 6.5 mm 10 mm 14 mm
62320-1/4 1/4" 9 mm 13 mm 17 mm
62320-3/8 3/8" 9.5 mm 13.5 mm 19 mm
62320-1/2 1/2" 10 mm 14.5 mm 24 mm
62320-3/4 3/4" 11 mm 16 mm 30 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
