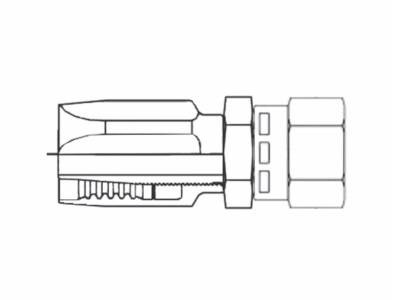

627R-1 Couplamatic Reusable Coupling - R1 & R2 Reusables - JIC 37° - Female Swivel - 3/8" Hose ID - 9/16x18 Thread Size (for 100R1 Thin Hose)

627R-1 by Couplamatic | R1 & R2 Reusable Coupling | 3/8" Hose ID x 9/16x18 Thread Size | for 100R1 Thin Hose JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $9.26 Save $9.26
$23.15
$23.15 - $23.15
$23.15
$13.89
$13.89 - $13.89
$13.89

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - JIC 37° - Female Swivel
Specifications for Variant SKU: 627R-1 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Thread Size Tube OD Hose Type
    424R-1 1/4" 7/16x20 1/4" 100R1 Thin
    424R-2 1/4" 7/16x20 1/4" 100R2 Thin
    627R-1 3/8" 9/16x18 3/8" 100R1 Thin
    627R-2 3/8" 9/16x18 3/8" 100R2 Thin
    630R-2 3/8" 3/4x16 1/2" 100R2 Thin
    824R-1 1/2" 3/4x16 1/2" 100R1 Thin
    824R-2 1/2" 3/4x16 1/2" 100R2 Thin
    827R-2 1/2" 7/8x14 5/8" 100R2 Thin
    1221R-2 3/4" 1-1/16x12 3/4" 100R2 Thin
    Couplamatic Systems Inc

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
