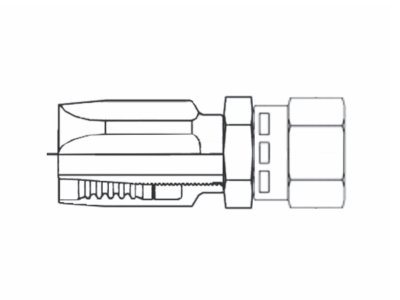

824R-1 Couplamatic Reusable Coupling - R1 & R2 Reusables - JIC 37° - Female Swivel - 1/2" Hose ID - 3/4x16 Thread Size (for 100R1 Thin Hose)

824R-1 by Couplamatic | R1 & R2 Reusable Coupling | 1/2" Hose ID x 3/4x16 Thread Size | for 100R1 Thin Hose JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $9.75 Save $9.75
$24.38
$24.38 - $24.38
$24.38
$14.63
$14.63 - $14.63
$14.63

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - JIC 37° - Female Swivel
Specifications for Variant SKU: 824R-1 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Reusable — Field Attachable

824R Reusable Coupling — JIC 37°, Female Swivel, Straight

824R is the JIC 37°, Female Swivel, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Thread Size Tube OD Hose Type
424R-1 1/4" 7/16x20 1/4" 100R1 Thin
424R-2 1/4" 7/16x20 1/4" 100R2 Thin
627R-1 3/8" 9/16x18 3/8" 100R1 Thin
627R-2 3/8" 9/16x18 3/8" 100R2 Thin
630R-2 3/8" 3/4x16 1/2" 100R2 Thin
824R-1 1/2" 3/4x16 1/2" 100R1 Thin
824R-2 1/2" 3/4x16 1/2" 100R2 Thin
827R-2 1/2" 7/8x14 5/8" 100R2 Thin
1221R-2 3/4" 1-1/16x12 3/4" 100R2 Thin

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
