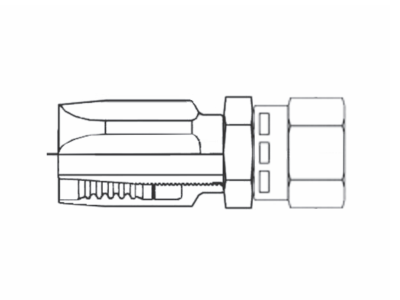

630R-2 Couplamatic Reusable Coupling - R1 & R2 Reusables - JIC 37° - Female Swivel - 3/8" Hose ID - 3/4x16 Thread Size (for 100R2 Thin Hose)

630R-2 by Couplamatic | R1 & R2 Reusable Coupling | 3/8" Hose ID x 3/4x16 Thread Size | for 100R2 Thin Hose JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $12.10 Save $12.10
$30.25
$30.25 - $30.25
$30.25
$18.15
$18.15 - $18.15
$18.15

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - JIC 37° - Female Swivel
Specifications for Variant SKU: 630R-2 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Thread Size Tube OD Hose Type
    424R-1 1/4" 7/16x20 1/4" 100R1 Thin
    424R-2 1/4" 7/16x20 1/4" 100R2 Thin
    627R-1 3/8" 9/16x18 3/8" 100R1 Thin
    627R-2 3/8" 9/16x18 3/8" 100R2 Thin
    630R-2 3/8" 3/4x16 1/2" 100R2 Thin
    824R-1 1/2" 3/4x16 1/2" 100R1 Thin
    824R-2 1/2" 3/4x16 1/2" 100R2 Thin
    827R-2 1/2" 7/8x14 5/8" 100R2 Thin
    1221R-2 3/4" 1-1/16x12 3/4" 100R2 Thin
