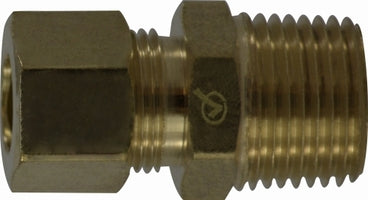

700068-0508 Midland Lead Free Compression Fitting - Male Adapter - 5/16" Tube OD x 1/2" Male Pipe - Brass

700068-0508 by Midland | Lead Free Compression Fitting | 5/16" Tube OD x 1/2" Male Pipe | Adapter | Brass | Replaces: 18186LF

Save $4.24

$11.39

$11.39 - $11.39

$11.39

$7.15

$7.15 - $7.15

$7.15

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Male Adapter

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 340 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 700068-0508 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/16in Tube Compression, 1/2in Male NPT
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction - nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Crossover Series:
LF68

Part Number	Tube OD x Male Pipe
700068-0202	1/8" x 1/8"
700068-0302	3/16" x 1/8"
700068-0304	3/16" x 1/4"
700068-0402	1/4" x 1/8"
700068-0404	1/4" x 1/4"
700068-0406	1/4" x 3/8"
700068-0408	1/4" x 1/2"
700068-0502	5/16" x 1/8"
700068-0504	5/16" x 1/4"
700068-0506	5/16" x 3/8"
700068-0508	5/16" x 1/2"
700068-0602	3/8" x 1/8"
700068-0604	3/8" x 1/4"
700068-0606	3/8" x 3/8"
700068-0608	3/8" x 1/2"
700068-0612	3/8" x 3/4"
700068-0704	7/16" x 1/4"
700068-0706	7/16" x 3/8"
700068-0804	1/2" x 1/4"
700068-0806	1/2" x 3/8"
700068-0812	1/2" x 3/4"
700068-1006	5/8" x 3/8"
700068-1008	5/8" x 1/2"
700068-1012	5/8" x 3/4"
700068-1208	3/4" x 1/2"
700068-1212	3/4" x 3/4"
700068-1408	7/8" x 1/2"
700068-1412	7/8" x 3/4"
700068-1416	7/16" x 1"
