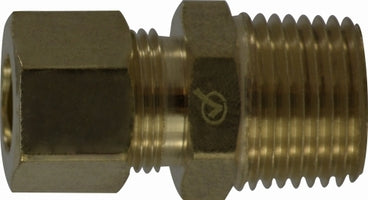

700068-1006 Midland Lead Free Compression Fitting - Male Adapter - 5/8" Tube OD x 3/8" Male Pipe - Brass

700068-1006 by Midland | Lead Free Compression Fitting | 5/8" Tube OD x 3/8" Male Pipe | Adapter | Brass | Replaces: 18197LF / 18-197LF

Save $0.50 Save $0.50
$4.47
$4.47 - $4.47
$4.47
$3.97
$3.97 - $3.97
$3.97

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Male Adapter

Inventory @ Manufacturers Warehouse: 2091 Units
Specifications for Variant SKU: 700068-1006 Midland
Shape (Orientation): Straight
Ends Configuration: 5/8in Tube Compression, 3/8in Male NPT
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Water, Gasoline, Oil, and Vacuum Lines. Used With: Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range: -40°F to +250°F Conformance: Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Three piece construction - nut, sleeve (or ferrule) and body.
  • Easy to disassemble, no flaring tool required.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/8-18
Crossover Series:
LF68
Part Number Tube OD x Male Pipe
700068-0202 1/8" x 1/8"
700068-0302 3/16" x 1/8"
700068-0304 3/16" x 1/4"
700068-0402 1/4" x 1/8"
700068-0404 1/4" x 1/4"
700068-0406 1/4" x 3/8"
700068-0408 1/4" x 1/2"
700068-0502 5/16" x 1/8"
700068-0504 5/16" x 1/4"
700068-0506 5/16" x 3/8"
700068-0508 5/16" x 1/2"
700068-0602 3/8" x 1/8"
700068-0604 3/8" x 1/4"
700068-0606 3/8" x 3/8"
700068-0608 3/8" x 1/2"
700068-0612 3/8" x 3/4"
700068-0704 7/16" x 1/4"
700068-0706 7/16" x 3/8"
700068-0804 1/2" x 1/4"
700068-0806 1/2" x 3/8"
700068-0812 1/2" x 3/4"
700068-1006 5/8" x 3/8"
700068-1008 5/8" x 1/2"
700068-1012 5/8" x 3/4"
700068-1208 3/4" x 1/2"
700068-1212 3/4" x 3/4"
700068-1408 7/8" x 1/2"
700068-1412 7/8" x 3/4"
700068-1416 7/16" x 1"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
