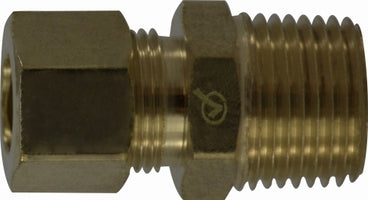

700068-0608 Midland Lead Free Compression Fitting - Male Adapter - 3/8" Tube OD x 1/2" Male Pipe - Brass

700068-0608 by Midland | Lead Free Compression Fitting | 3/8" Tube OD x 1/2" Male Pipe | Adapter | Brass | Replaces: 18190LF / 18-190LF

Save $0.50

$4.51

$4.51 - $4.51

$4.51

$4.01

$4.01 - $4.01

$4.01

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Male Adapter

Inventory @ Manufacturers Warehouse: 20867 Units

Quantity

Specifications for Variant SKU: 700068-0608 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Tube Compression, 1/2in Male NPT
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction - nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Crossover Series:
LF68

Part Number	Tube OD x Male Pipe
700068-0202	1/8" x 1/8"
700068-0302	3/16" x 1/8"
700068-0304	3/16" x 1/4"
700068-0402	1/4" x 1/8"
700068-0404	1/4" x 1/4"
700068-0406	1/4" x 3/8"
700068-0408	1/4" x 1/2"
700068-0502	5/16" x 1/8"
700068-0504	5/16" x 1/4"
700068-0506	5/16" x 3/8"
700068-0508	5/16" x 1/2"
700068-0602	3/8" x 1/8"
700068-0604	3/8" x 1/4"
700068-0606	3/8" x 3/8"
700068-0608	3/8" x 1/2"
700068-0612	3/8" x 3/4"
700068-0704	7/16" x 1/4"
700068-0706	7/16" x 3/8"
700068-0804	1/2" x 1/4"
700068-0806	1/2" x 3/8"
700068-0812	1/2" x 3/4"
700068-1006	5/8" x 3/8"
700068-1008	5/8" x 1/2"
700068-1012	5/8" x 3/4"
700068-1208	3/4" x 1/2"
700068-1212	3/4" x 3/4"
700068-1408	7/8" x 1/2"
700068-1412	7/8" x 3/4"
700068-1416	7/16" x 1"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
