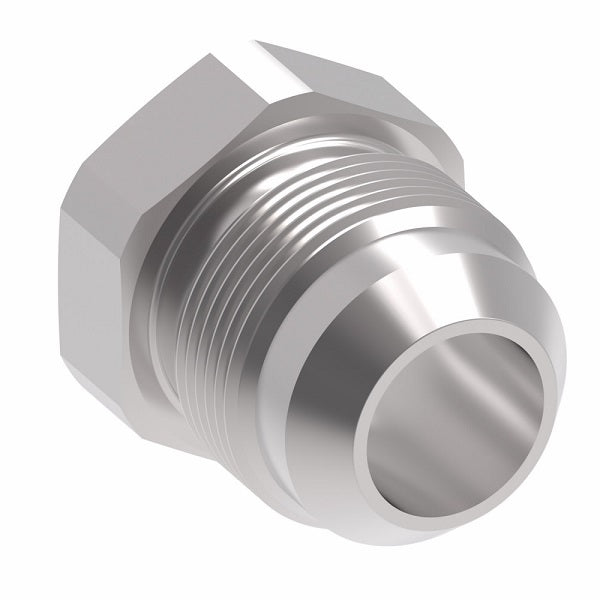

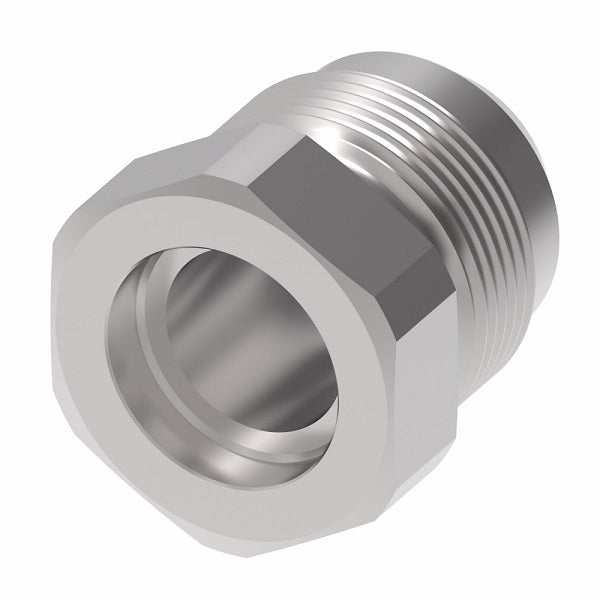

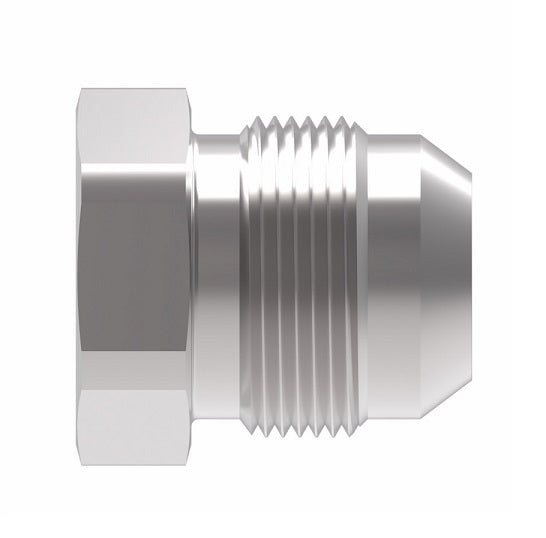

73014-10S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -10 Braze Port x -10 Male 37° JIC Flare | Steel

73014-10S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -10 Braze Port x -10 Male 37° JIC Flare | Steel

Name: 73014-10S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -10 Braze Port x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 73014-10S Danfoss
Price: 2.98 USD
Availability: InStock

$2.98 - $2.98

$2.98

$2.98 - $2.98

$2.98

Aeroquip® by Danfoss
Braze Port/37° JIC Flare Straight Adapter
Braze Port x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 73014-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Braze End, 5/8in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T	A	B	C
73014-4S	0.25	7/16-20	0.74"	0.25"	0.16"
73014-5S	0.31	1/2-20	0.80"	0.31"	0.16"
73014-6S	0.38	9/16-18	0.81"	0.38"	0.16"
73014-8-6S	0.50	9/16-18	0.84"	0.50"	0.16"
73014-8S	0.50	3/4-16	0.94"	0.50"	0.16"
73014-10S	0.63	7/8-14	1.07"	0.62"	0.16"
73014-12S	0.75	1-1/16-12	1.24"	0.75"	0.25"
73014-12-10S	0.75	7/8-14	1.13"	0.75"	0.25"
73014-16S	1.00	1-5/16-12	1.29"	1.00"	0.25"
73014-16-12S	1.00	1-1/16-12	1.24"	1.00"	0.25"
73014-16-20S	-	1-5/8-12	-	-	-
73014-20S	1.25	1-5/8-12	1.40"	1.25"	0.25"
73014-20-16S	1.25	1-5/16-12	1.29"	1.25"	0.25"
73014-24S	1.50	1-7/8-12	1.58"	1.50"	0.25"
73014-24-20S	1.50	1-5/8-12	1.46"	1.50"	0.25"
73014-24-32S	1.50	2-1/2-12	1.95"	1.50"	0.25"
73014-32S	2.00	2-1/2-12	1.96"	2.00"	0.25"
73014-40S	2.50	3-12	1.86"	2.50"	0.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
