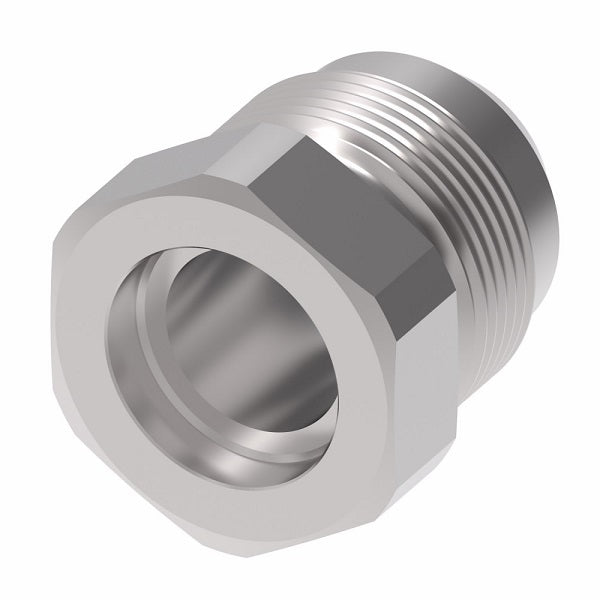

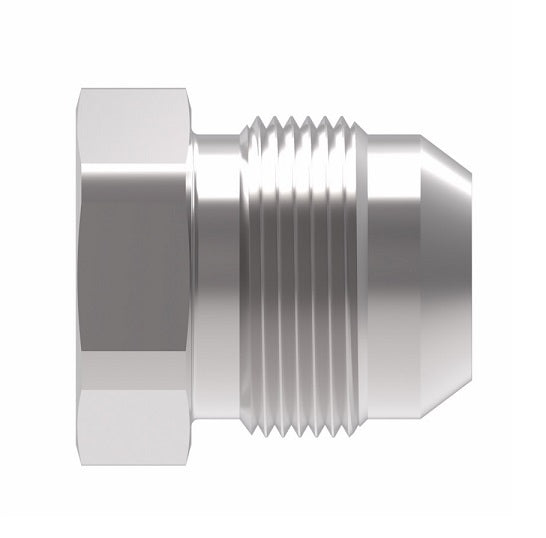

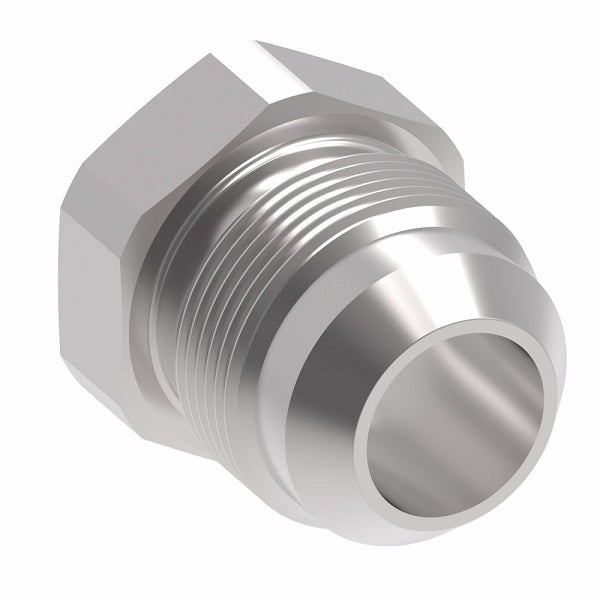

73014-24-20S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -24 Braze Port x -24 Male 37° JIC Flare | Steel
73014-24-20S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -24 Braze Port x -24 Male 37° JIC Flare | Steel
73014-24-20S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -24 Braze Port x -24 Male 37° JIC Flare | Steel
73014-24-20S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -24 Braze Port x -24 Male 37° JIC Flare | Steel

73014-24-20S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -24 Braze Port x -24 Male 37° JIC Flare | Steel

$26.96 - $26.96
$26.96
$26.96 - $26.96
$26.96

Aeroquip® by Danfoss
Braze Port/37° JIC Flare Straight Adapter
Braze Port x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 73014-24-20S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Braze End, 1-1/2in Male JIC
Material(s): Steel
Steel
Part Number		 Tube O.D. Thread T A B C
73014-4S 0.25 7/16-20 0.74" 0.25" 0.16"
73014-5S 0.31 1/2-20 0.80" 0.31" 0.16"
73014-6S 0.38 9/16-18 0.81" 0.38" 0.16"
73014-8-6S 0.50 9/16-18 0.84" 0.50" 0.16"
73014-8S 0.50 3/4-16 0.94" 0.50" 0.16"
73014-10S 0.63 7/8-14 1.07" 0.62" 0.16"
73014-12S 0.75 1-1/16-12 1.24" 0.75" 0.25"
73014-12-10S 0.75 7/8-14 1.13" 0.75" 0.25"
73014-16S 1.00 1-5/16-12 1.29" 1.00" 0.25"
73014-16-12S 1.00 1-1/16-12 1.24" 1.00" 0.25"
73014-16-20S - 1-5/8-12 - - -
73014-20S 1.25 1-5/8-12 1.40" 1.25" 0.25"
73014-20-16S 1.25 1-5/16-12 1.29" 1.25" 0.25"
73014-24S 1.50 1-7/8-12 1.58" 1.50" 0.25"
73014-24-20S 1.50 1-5/8-12 1.46" 1.50" 0.25"
73014-24-32S 1.50 2-1/2-12 1.95" 1.50" 0.25"
73014-32S 2.00 2-1/2-12 1.96" 2.00" 0.25"
73014-40S 2.50 3-12 1.86" 2.50" 0.25"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
