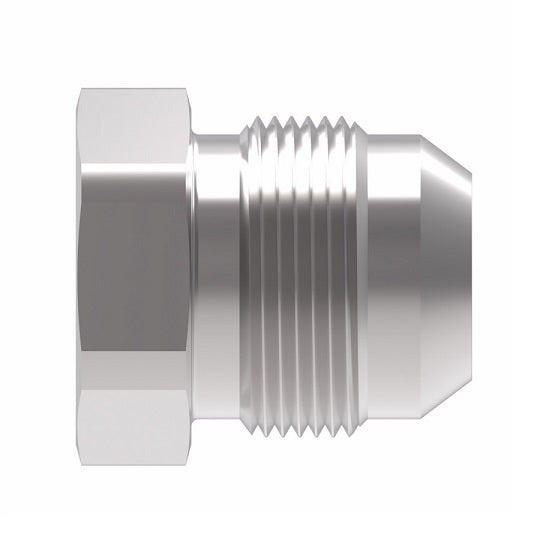

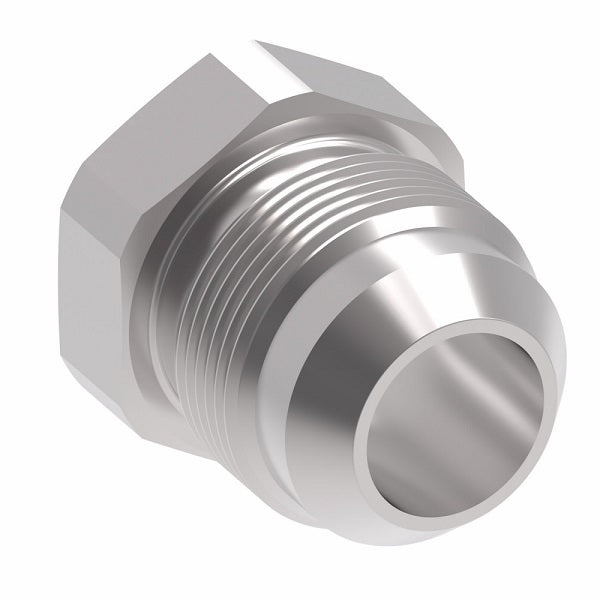

73014-5S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -05 Braze Port x -05 Male 37° JIC Flare | Steel
73014-5S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -05 Braze Port x -05 Male 37° JIC Flare | Steel
73014-5S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -05 Braze Port x -05 Male 37° JIC Flare | Steel
73014-5S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -05 Braze Port x -05 Male 37° JIC Flare | Steel

73014-5S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -05 Braze Port x -05 Male 37° JIC Flare | Steel

$37.10 - $37.10
$37.10
$37.10 - $37.10
$37.10

Aeroquip® by Danfoss
Braze Port/37° JIC Flare Straight Adapter
Braze Port x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 73014-5S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/16in Braze End, 5/16in Male JIC
Material(s): Steel
Steel
Part Number		 Tube O.D. Thread T A B C
73014-4S 0.25 7/16-20 0.74" 0.25" 0.16"
73014-5S 0.31 1/2-20 0.80" 0.31" 0.16"
73014-6S 0.38 9/16-18 0.81" 0.38" 0.16"
73014-8-6S 0.50 9/16-18 0.84" 0.50" 0.16"
73014-8S 0.50 3/4-16 0.94" 0.50" 0.16"
73014-10S 0.63 7/8-14 1.07" 0.62" 0.16"
73014-12S 0.75 1-1/16-12 1.24" 0.75" 0.25"
73014-12-10S 0.75 7/8-14 1.13" 0.75" 0.25"
73014-16S 1.00 1-5/16-12 1.29" 1.00" 0.25"
73014-16-12S 1.00 1-1/16-12 1.24" 1.00" 0.25"
73014-16-20S - 1-5/8-12 - - -
73014-20S 1.25 1-5/8-12 1.40" 1.25" 0.25"
73014-20-16S 1.25 1-5/16-12 1.29" 1.25" 0.25"
73014-24S 1.50 1-7/8-12 1.58" 1.50" 0.25"
73014-24-20S 1.50 1-5/8-12 1.46" 1.50" 0.25"
73014-24-32S 1.50 2-1/2-12 1.95" 1.50" 0.25"
73014-32S 2.00 2-1/2-12 1.96" 2.00" 0.25"
73014-40S 2.50 3-12 1.86" 2.50" 0.25"
