73014-12S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -12 Braze Port x -12 Male 37° JIC Flare | Steel

73014-12S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -12 Braze Port x -12 Male 37° JIC Flare | Steel

Name: 73014-12S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -12 Braze Port x -12 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 73014-12S Danfoss
Price: 3.76 USD
Availability: InStock

$3.76 - $3.76

$3.76

$3.76 - $3.76

$3.76

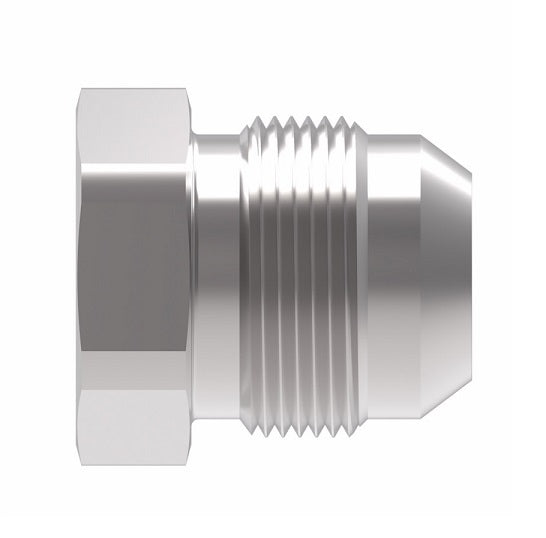

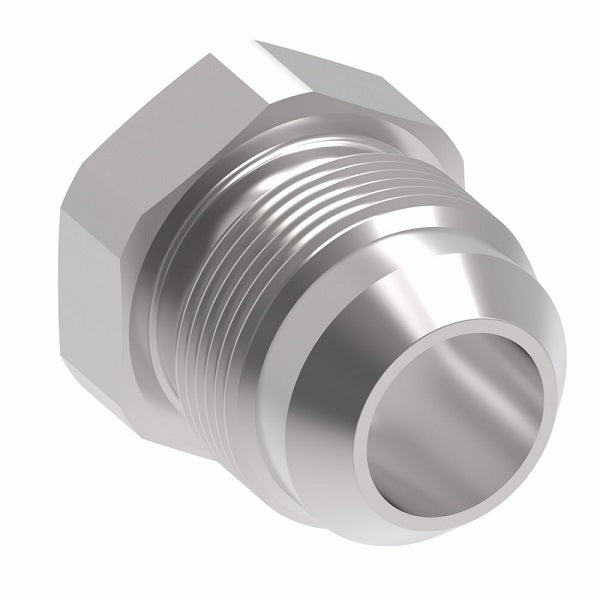

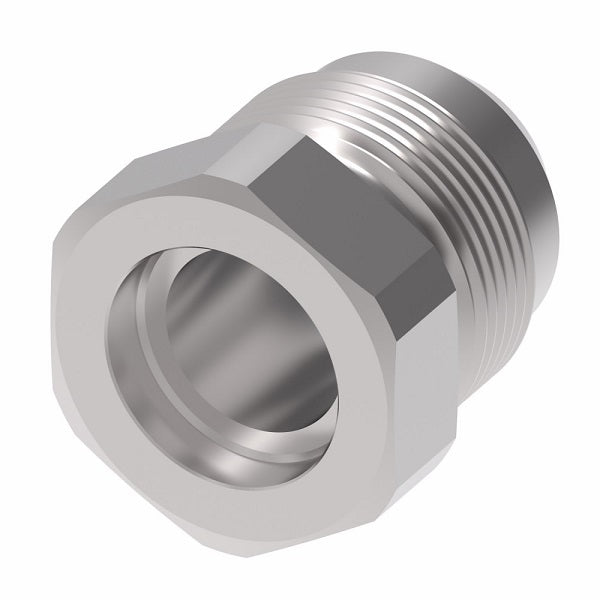

Aeroquip® by Danfoss
Braze Port/37° JIC Flare Straight Adapter
Braze Port x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 73014-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Braze End, 3/4in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T	A	B	C
73014-4S	0.25	7/16-20	0.74"	0.25"	0.16"
73014-5S	0.31	1/2-20	0.80"	0.31"	0.16"
73014-6S	0.38	9/16-18	0.81"	0.38"	0.16"
73014-8-6S	0.50	9/16-18	0.84"	0.50"	0.16"
73014-8S	0.50	3/4-16	0.94"	0.50"	0.16"
73014-10S	0.63	7/8-14	1.07"	0.62"	0.16"
73014-12S	0.75	1-1/16-12	1.24"	0.75"	0.25"
73014-12-10S	0.75	7/8-14	1.13"	0.75"	0.25"
73014-16S	1.00	1-5/16-12	1.29"	1.00"	0.25"
73014-16-12S	1.00	1-1/16-12	1.24"	1.00"	0.25"
73014-16-20S	-	1-5/8-12	-	-	-
73014-20S	1.25	1-5/8-12	1.40"	1.25"	0.25"
73014-20-16S	1.25	1-5/16-12	1.29"	1.25"	0.25"
73014-24S	1.50	1-7/8-12	1.58"	1.50"	0.25"
73014-24-20S	1.50	1-5/8-12	1.46"	1.50"	0.25"
73014-24-32S	1.50	2-1/2-12	1.95"	1.50"	0.25"
73014-32S	2.00	2-1/2-12	1.96"	2.00"	0.25"
73014-40S	2.50	3-12	1.86"	2.50"	0.25"
