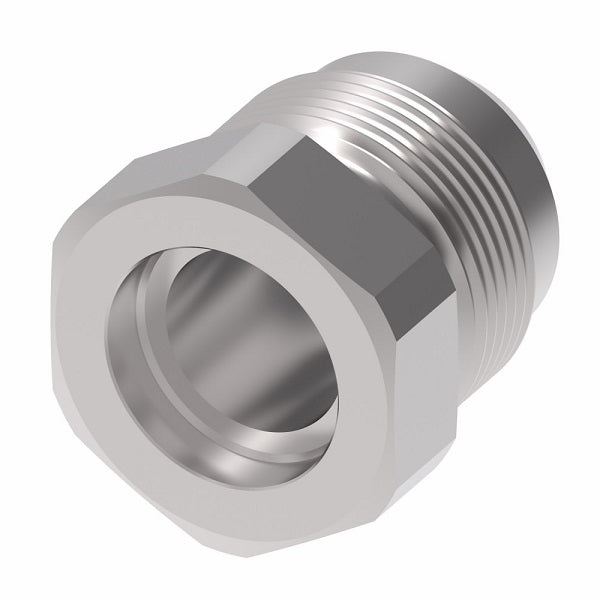

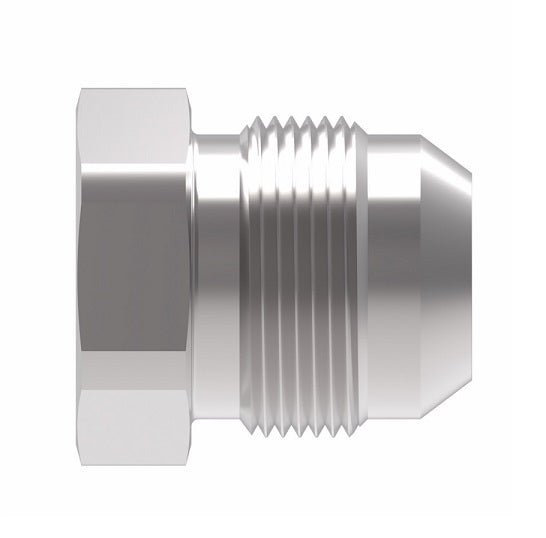

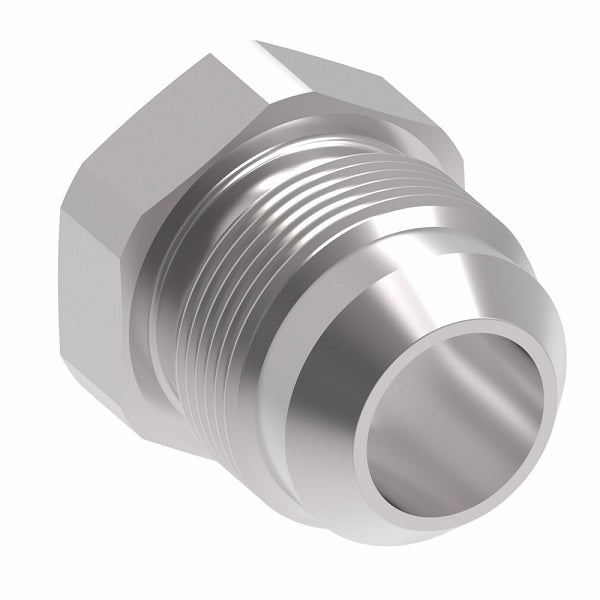

73014-8-6S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -08 Braze Port x -08 Male 37° JIC Flare | Steel

73014-8-6S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -08 Braze Port x -08 Male 37° JIC Flare | Steel

Name: 73014-8-6S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -08 Braze Port x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 73014-8-6S Danfoss
Price: 4.6 USD
Availability: InStock

$4.60 - $4.60

$4.60

$4.60 - $4.60

$4.60

Aeroquip® by Danfoss
Braze Port/37° JIC Flare Straight Adapter
Braze Port x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 73014-8-6S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Braze End, 1/2in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T	A	B	C
73014-4S	0.25	7/16-20	0.74"	0.25"	0.16"
73014-5S	0.31	1/2-20	0.80"	0.31"	0.16"
73014-6S	0.38	9/16-18	0.81"	0.38"	0.16"
73014-8-6S	0.50	9/16-18	0.84"	0.50"	0.16"
73014-8S	0.50	3/4-16	0.94"	0.50"	0.16"
73014-10S	0.63	7/8-14	1.07"	0.62"	0.16"
73014-12S	0.75	1-1/16-12	1.24"	0.75"	0.25"
73014-12-10S	0.75	7/8-14	1.13"	0.75"	0.25"
73014-16S	1.00	1-5/16-12	1.29"	1.00"	0.25"
73014-16-12S	1.00	1-1/16-12	1.24"	1.00"	0.25"
73014-16-20S	-	1-5/8-12	-	-	-
73014-20S	1.25	1-5/8-12	1.40"	1.25"	0.25"
73014-20-16S	1.25	1-5/16-12	1.29"	1.25"	0.25"
73014-24S	1.50	1-7/8-12	1.58"	1.50"	0.25"
73014-24-20S	1.50	1-5/8-12	1.46"	1.50"	0.25"
73014-24-32S	1.50	2-1/2-12	1.95"	1.50"	0.25"
73014-32S	2.00	2-1/2-12	1.96"	2.00"	0.25"
73014-40S	2.50	3-12	1.86"	2.50"	0.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
