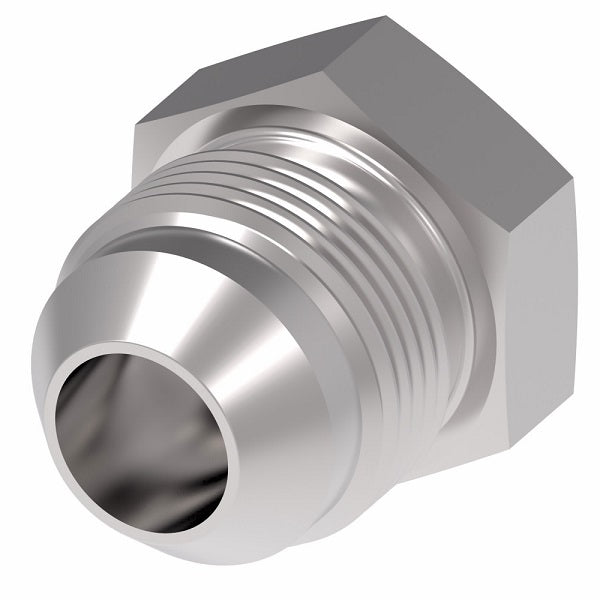

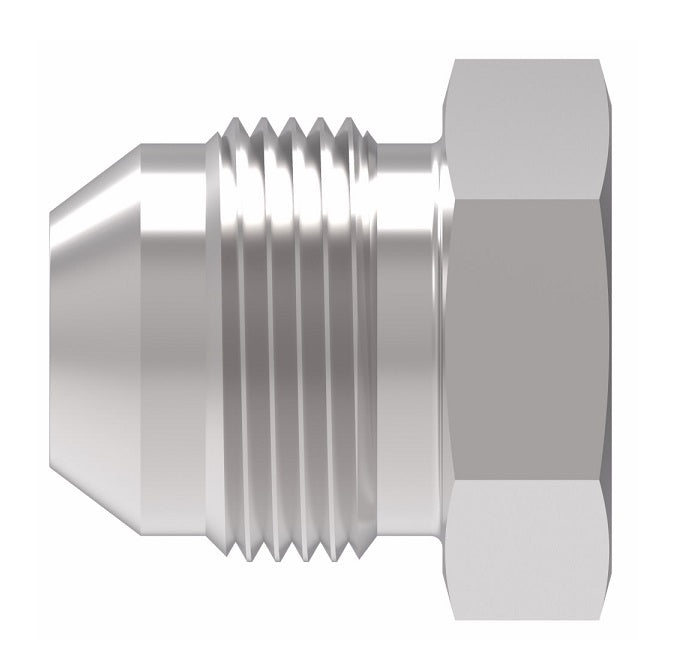

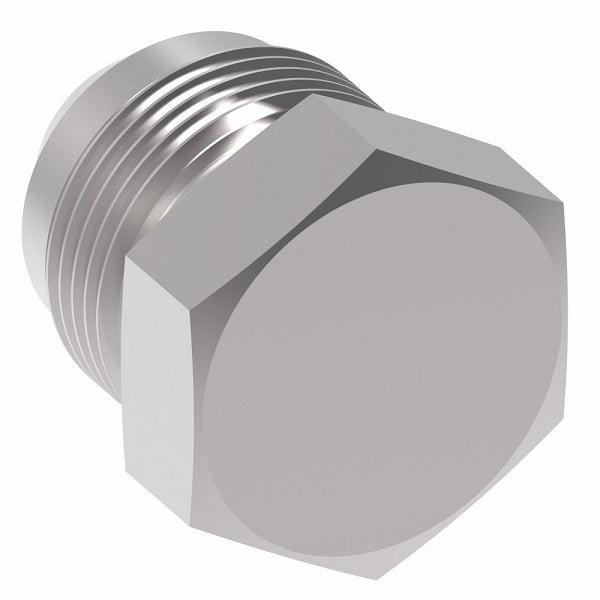

900599-20S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -20 Male 37° JIC Flare | Steel

900599-20S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -20 Male 37° JIC Flare | Steel

Name: 900599-20S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -20 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 900599-20S Danfoss
Price: 9.96 USD
Availability: InStock

$9.96 - $9.96

$9.96

$9.96 - $9.96

$9.96

Aeroquip® by Danfoss
Male 37° JIC Flare Plug Adapter
Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 900599-20S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070109


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Thread T1	A	B
900599-3S	-	0.19"	3/8-24	0.73"	0.44"
900599-4S	-	0.25"	7/16-20	0.80"	0.50"
900599-5S	-	0.31"	1/2-20	0.80"	0.56"
900599-6S	259-900599-6	0.38"	9/16-18	0.84"	0.62"
900599-8S	-	0.50"	3/4-16	0.94"	0.81"
900599-10S	-	0.63"	7/8-14	1.10"	0.94"
900599-12S	259-900599-12	0.75"	1-1/16-12	1.28"	1.12"
900599-14S	-	-	-	-	-
900599-16S	-	1.00"	1-5/16-12	1.33"	1.38"
900599-20S	-	1.25"	1-5/8-12	1.45"	1.69"
900599-24S	-	1.50"	1-7/8-12	1.65"	2.00"
900599-32S	-	2.00"	2-1/2-12	2.05"	2.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
