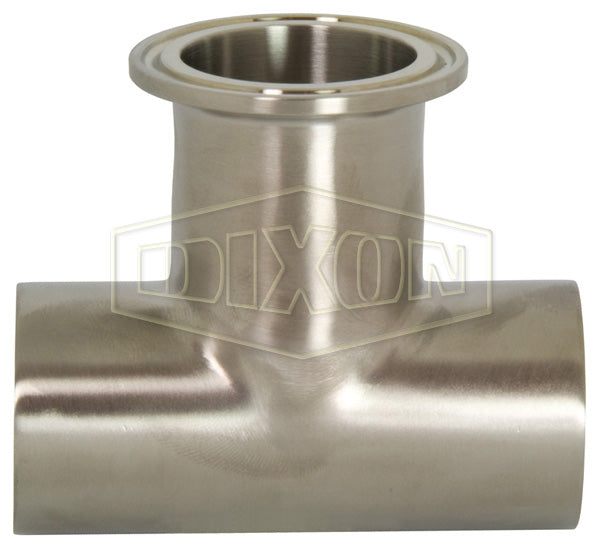

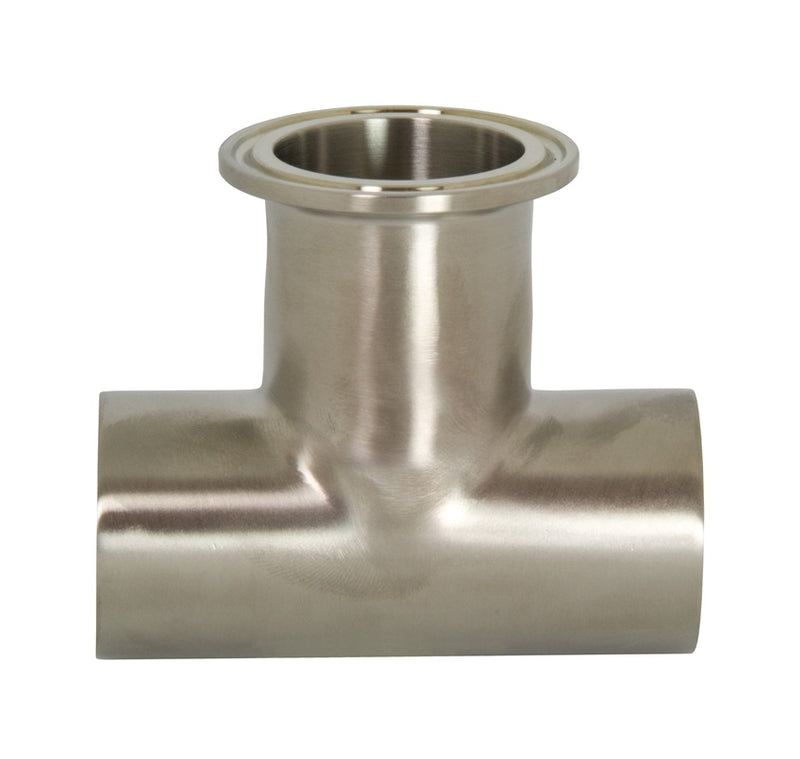

B7WWM-G300 Dixon Valve 304 Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 3" Tube OD

B7WWM-G300 Dixon Valve 304 Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 3" Tube OD

Save $72.11 Save $72.11
$180.28
$180.28 - $180.28
$180.28
$108.17
$108.17 - $108.17
$108.17

Dixon Sanitary Fittings
Polished Polished Weld Run x Clamp Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B7WWM-G300 Dixon
Shape (Orientation): Tee
Material(s): 304 Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD.
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Wall Thickness A B OD ID
- B7WWM-R50 1/2" - - - - -
- B7WWM-R75 3/4" - - - - -
B7WWM-G100 B7WWM-R100 1" 0.065" 2.25" 1.63" 1.00" 0.87"
B7WWM-G150 B7WWM-R150 1-1/2" 0.065" 3.31" 2.16" 1.50" 1.37"
B7WWM-G200 B7WWM-R200 2" 0.065" 4.12" 2.56" 2.00" 1.87"
B7WWM-G250 B7WWM-R250 2-1/2" 0.065" 4.69" 2.84" 2.50" 2.37"
B7WWM-G300 B7WWM-R300 3" 0.065" 5.19" 3.09" 3.00" 2.87"
B7WWM-G400 B7WWM-R400 4" 0.083" 6.88" 4.06" 4.00" 3.83"
/
