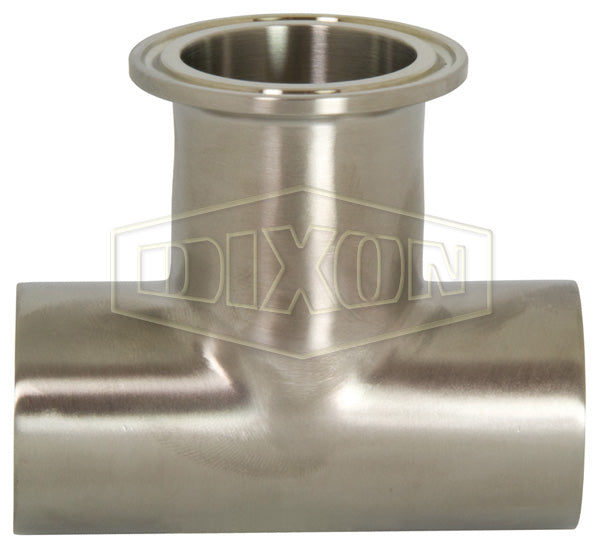

B7WWM-R400 Dixon Valve 316L Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 4" Tube OD

Name: B7WWM-R400 Dixon Valve 316L Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 4" Tube OD
Brand: Dixon
SKU: B7WWM-R400 Dixon
Price: 142.91 USD
Availability: InStock

Save $95.27

$238.18

$238.18 - $238.18

$238.18

$142.91

$142.91 - $142.91

$142.91

Dixon Sanitary Fittings

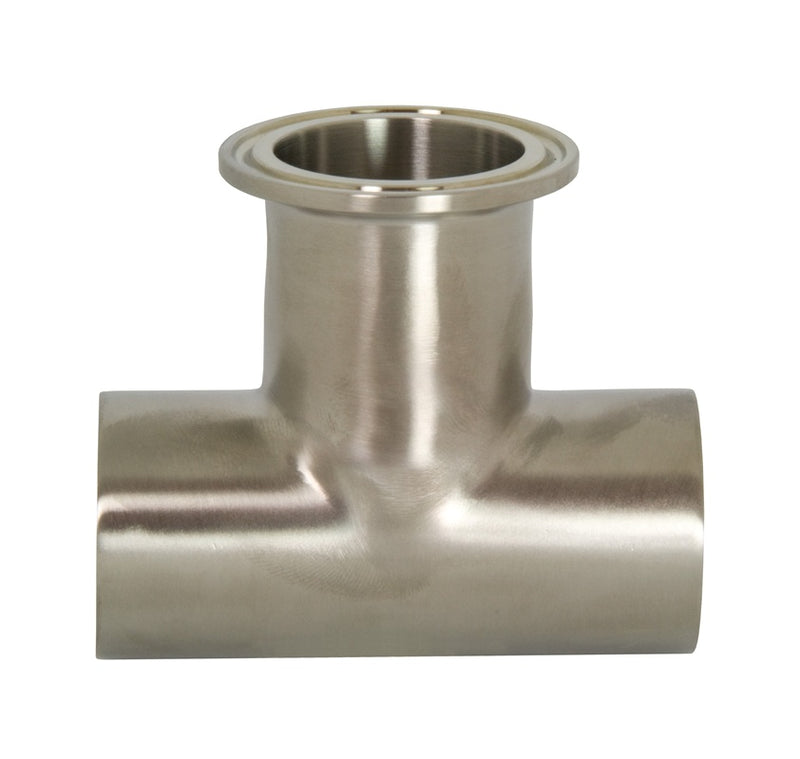

Polished Polished Weld Run x Clamp Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

Specifications for Variant SKU: B7WWM-R400 Dixon
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel
Special Properties:	Polished

Features:
3A sanitary finish ID and OD.


304 Stainless Steel Part Number	316L Stainless Steel Part Number	Tube OD	Wall Thickness	A	B	OD	ID
-	B7WWM-R50	1/2"	-	-	-	-	-
-	B7WWM-R75	3/4"	-	-	-	-	-
B7WWM-G100	B7WWM-R100	1"	0.065"	2.25"	1.63"	1.00"	0.87"
B7WWM-G150	B7WWM-R150	1-1/2"	0.065"	3.31"	2.16"	1.50"	1.37"
B7WWM-G200	B7WWM-R200	2"	0.065"	4.12"	2.56"	2.00"	1.87"
B7WWM-G250	B7WWM-R250	2-1/2"	0.065"	4.69"	2.84"	2.50"	2.37"
B7WWM-G300	B7WWM-R300	3"	0.065"	5.19"	3.09"	3.00"	2.87"
B7WWM-G400	B7WWM-R400	4"	0.083"	6.88"	4.06"	4.00"	3.83"

/
