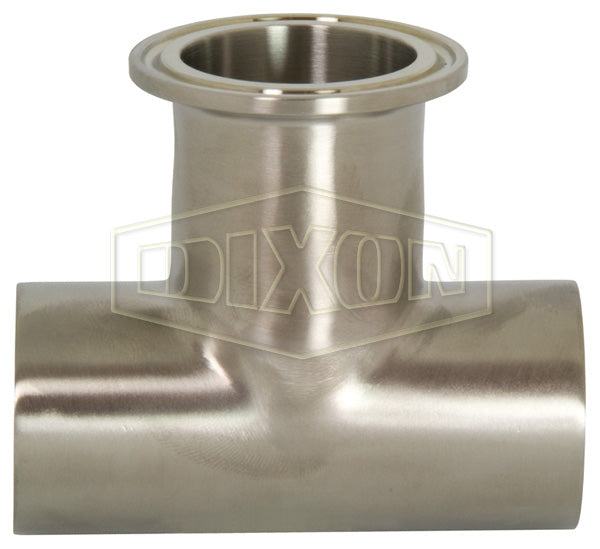

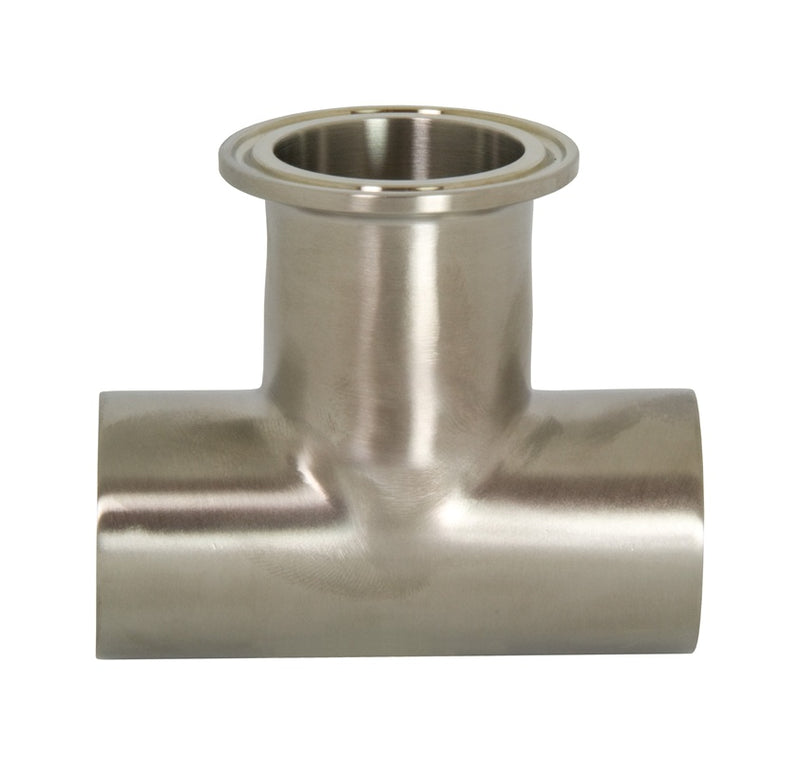

B7WWM-R100 Dixon Valve 316L Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 1" Tube OD

Name: B7WWM-R100 Dixon Valve 316L Stainless Steel Sanitary Polished Weld Run x Clamp Branch Tee - 1" Tube OD
Brand: Dixon
SKU: B7WWM-R100 Dixon
Price: 69.47 USD
Availability: InStock

Save $46.31

$115.78

$115.78 - $115.78

$115.78

$69.47

$69.47 - $69.47

$69.47

Dixon Sanitary Fittings
Polished Polished Weld Run x Clamp Branch Tee

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

Specifications for Variant SKU: B7WWM-R100 Dixon
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel
Special Properties:	Polished

Features:
3A sanitary finish ID and OD.


304 Stainless Steel Part Number	316L Stainless Steel Part Number	Tube OD	Wall Thickness	A	B	OD	ID
-	B7WWM-R50	1/2"	-	-	-	-	-
-	B7WWM-R75	3/4"	-	-	-	-	-
B7WWM-G100	B7WWM-R100	1"	0.065"	2.25"	1.63"	1.00"	0.87"
B7WWM-G150	B7WWM-R150	1-1/2"	0.065"	3.31"	2.16"	1.50"	1.37"
B7WWM-G200	B7WWM-R200	2"	0.065"	4.12"	2.56"	2.00"	1.87"
B7WWM-G250	B7WWM-R250	2-1/2"	0.065"	4.69"	2.84"	2.50"	2.37"
B7WWM-G300	B7WWM-R300	3"	0.065"	5.19"	3.09"	3.00"	2.87"
B7WWM-G400	B7WWM-R400	4"	0.083"	6.88"	4.06"	4.00"	3.83"

/
